Removing hardtop fastenings
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Material damage to convertible top frame and rear glass window!
- The convertible top must not be moved forwards electrically in service position.
REMOVING HARDTOP FASTENINGS INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Open convertible top completely | ||

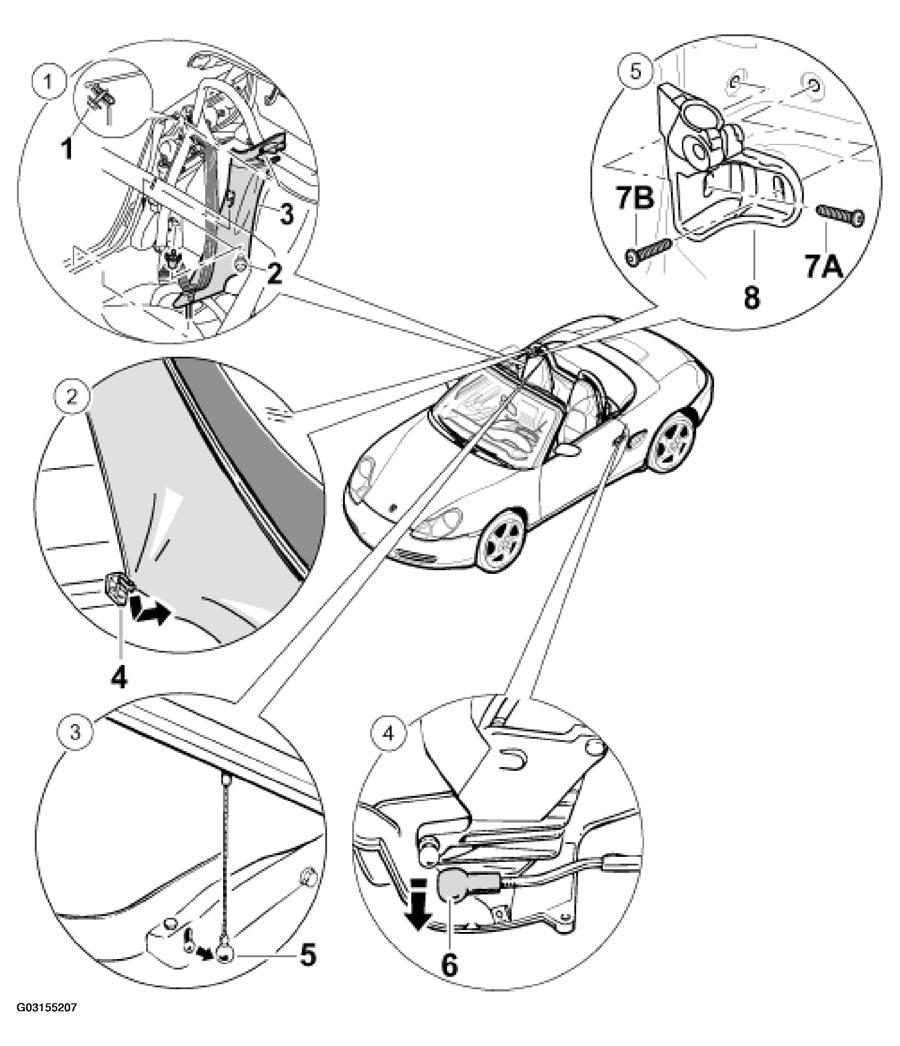

| 1 | Remove side-panel lining | Unscrew the top fastening screw -1-2-3- . See Fig 1 . |
| Convertible top in service position | See REMOVING CONVERTIBLE TOP . | |
| 2 | Detach cloth covering | Disengage the strip on left and right sides of cloth covering -4- . See Fig 1 . |
| 3 | Detach tension cable | Press the ball socket -5- . See Fig 1 . |
| 4 | Detach push bar | Press the ball socket -6- . See Fig 1 . |
| Swivel convertible top to the front | Swivel convertible top to the extent that the screws -A and B- . See Fig 1 . | |
| 5 | Unscrew fastening screws (A, B) | Lift tension bow, unscrew fastening screw -A--B- . See Fig 1 . |
| Open convertible top completely | When operating the convertible top, make sure that the unclipped push bar does not jam in the convertible top mechanism. | |
| Remove the bracket |
