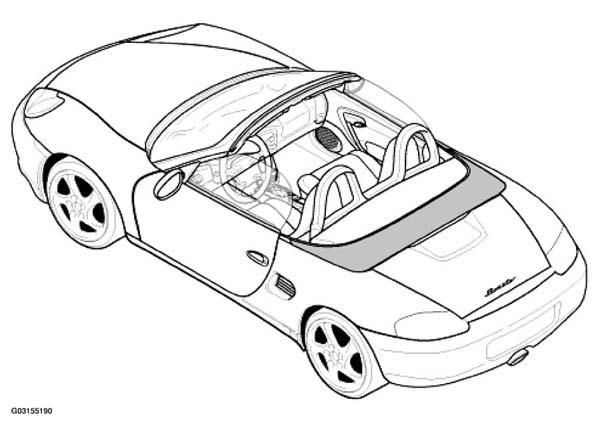

REMOVING AND INSTALLING CONVERTIBLE TOP COMPARTMENT LID (STEPS 1-18)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Collar nut | 4 | ||

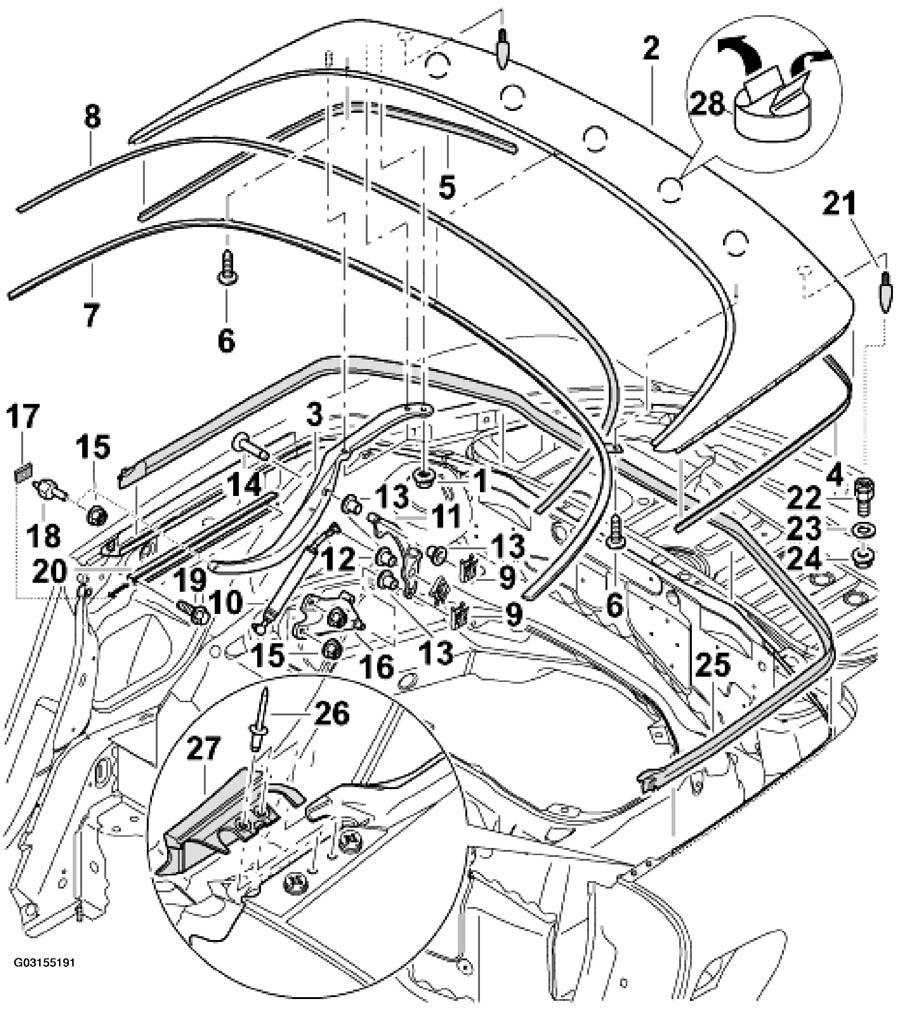

| 2 | Lid for convertible top compartment | 1 | Remove convertible top compartment lid -2- . See Fig 2 . | Position convertible top compartment lid -2-3-1- . See Fig 2 . |
| 3 | Guide arm | |||
| 4 | Edge guard, left | Pull off. | Push on. | |
| 5 | Edge guard | Pull off. | Push on. | |
| 6 | Fastening screws | 2 | ||
| 7 | Rail | 1 | Pull rail -7- . See Fig 2 . | Position rail -7-6- . See Fig 2 . |
| 8 | Rubber seal | 1 | Pull rubber seal -8-7- . See Fig 2 . | Push rubber seal -8-7- . See Fig 2 . |
| 9 | Retainer SLB 8 | 6 | Press out the retainer -9- . See Fig 2 . | Check retainer -9- . See Fig 2 . |
| 10 | Push-bar spring | 1 | Push ball socket of the push-bar spring -10-9-10-11- . See Fig 2 . | Insert push-bar spring -10-11-9-10- . See Fig 2 . |
| 11 | Hinged lever | 1 | Disconnect hinge lever -11-14-3-13-15- . See Fig 2 . | Push hinge lever -11-14-3-14-15-9- . See Fig 2 . |
| 12 | Bushing | 2 | Push bushing -12-11- . See Fig 2 . | Push bushing -12-11- . See Fig 2 . |
| 13 | Bushing | 2 | Push bushing -13-11- . See Fig 2 . | Push bushing -13-11- . See Fig 2 . |
| 14 | Pin | 1 | ||
| 15 | Fastening nut | 4 | ||
| 16 | Bearing block | 1 | Unscrew fastening nut -15-16- . See Fig 2 . | Position the mounting saddle -16-15- . See Fig 2 . |
| 17 | Sliding piece | 1 | Unclip sliding piece -17-18- . See Fig 2 . | Clip sliding piece -17-18- . See Fig 2 . |
| 18 | Eccentric pin | 1 | Undo collar nut -15-18-3- . See Fig 2 . | Adjust with respect to the side sections according to the lid contours. Screw down collar nut -15- . See Fig 2 . |
REMOVING AND INSTALLING CONVERTIBLE TOP COMPARTMENT LID (STEPS 19-28)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 19 | Fastening screw | 2 | ||
| 20 | Rail | 1 | Undo fastening screw -19-20- . See Fig 2 . | Position hinge -20-19- . See Fig 2 . |
| 21 | Journal | 1 | ||
| 23 | Washer | 2 | ||
| 22 | Adjusting element | 2 | Unscrew fastening nut -24-22- . See Fig 2 . | Position adjusting element -22-24-22- . See Fig 2 . |
| 24 | Fastening nut | 2 | ||
| 25 | Seal | 1 | Pull off seal -25- . See Fig 2 . | Push seal -25- . See Fig 2 . |
| 26 | Tubular rivets | 2 | See TOOLS AND MATERIALS | |
| 27 | Bracket | 1 | ||
| 28 | Foam pad | 5 | Pull off protective paper and stick onto the specified places. |
