Removing and installing door handle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

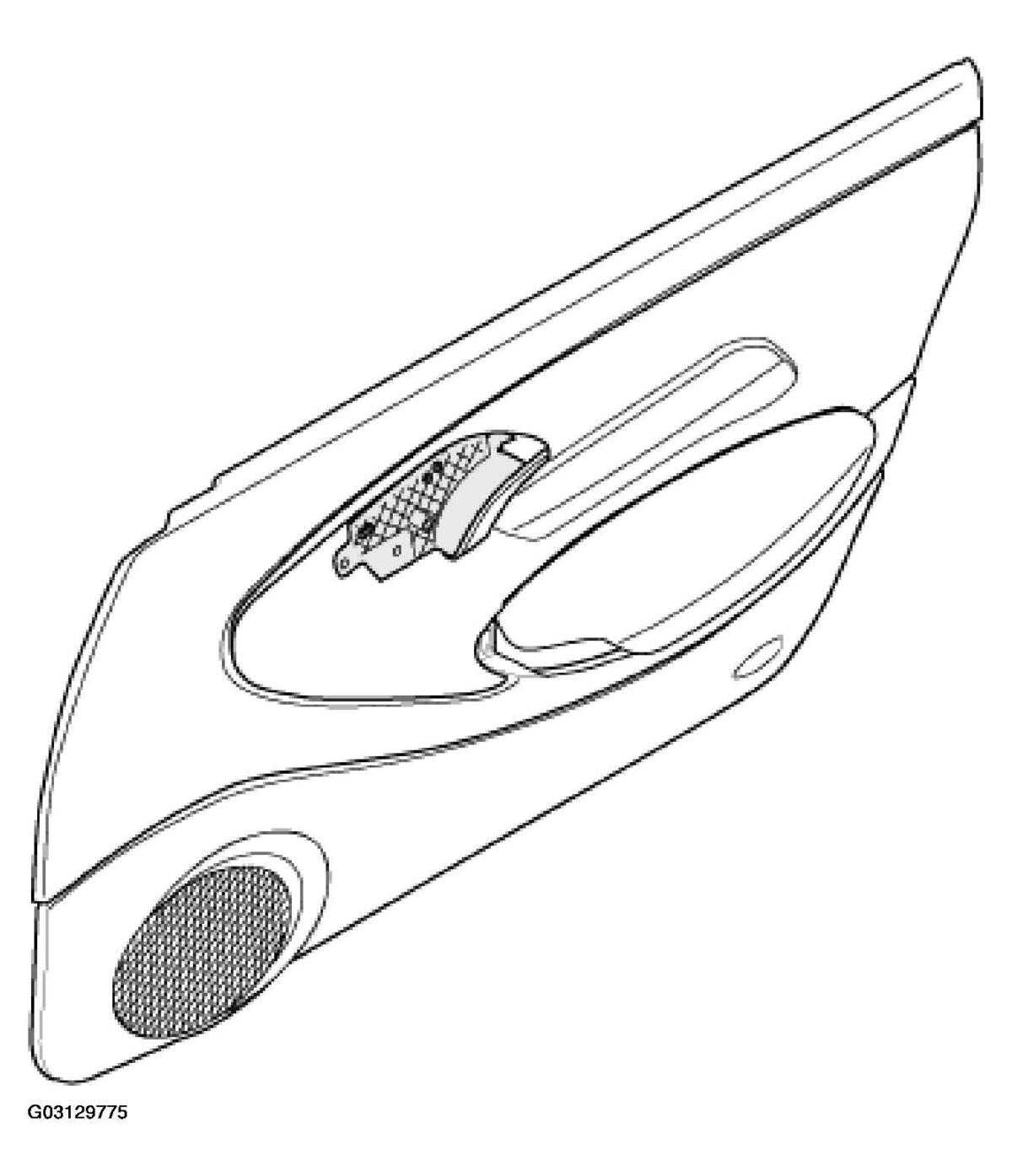

Fig 1: Identifying Interior Door Handle
G03129775Courtesy of PORSCHE OF NORTH AMERICA, INC.

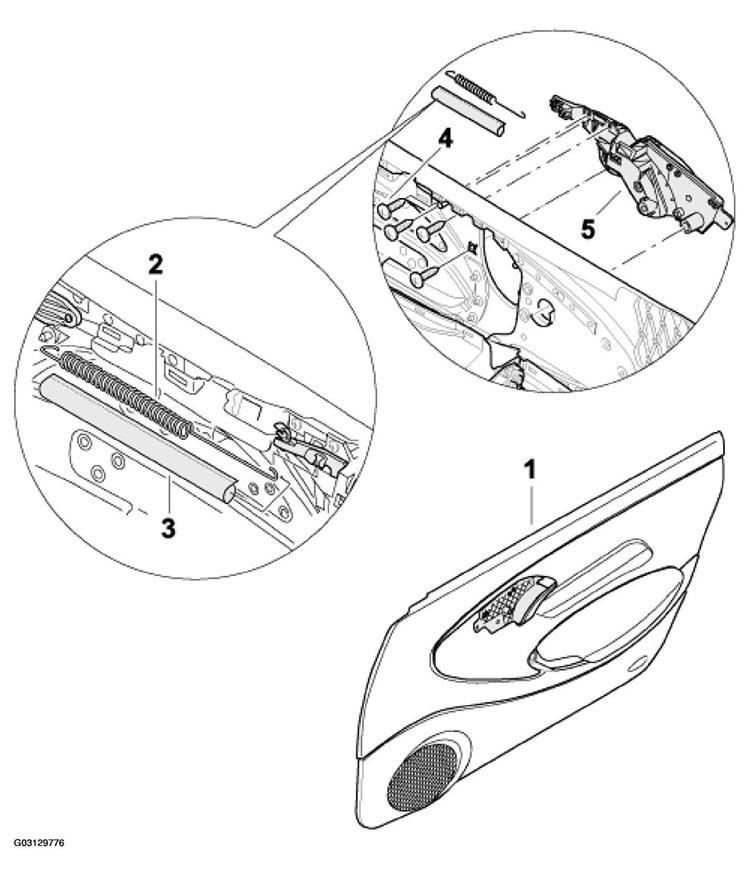

Fig 2: Removing And Installing Interior Door Handle Components
G03129776Courtesy of PORSCHE OF NORTH AMERICA, INC.
DOOR HANDLE REMOVING AND INSTALLING PROCEDURE

No. Designation Qty. Removal Installation
1 Door trim panel   Refer to REMOVING AND INSTALLING DOOR TRIM PANEL . Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .
2 Return spring -2-  . See Fig 2 . 1 Unclip from the door handle -5-1-  . See Fig 2 . Clip into the door handle -5-1-  . See Fig 2 .
3 Sleeve -3-  . See Fig 2 . 1 Pull off from the return spring -2-  . See Fig 2 . Pull onto the return spring -2-  . See Fig 2 .
4 Oval-head screw 4.2 x 13 4
5 Doorhandle -5-  . See Fig 2 . 1 Undo oval-head screws -4-1-  . See Fig 2 . Insert doorhandle -5-1-4-  . See Fig 2 .
