Disassembling and assembling door handle
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

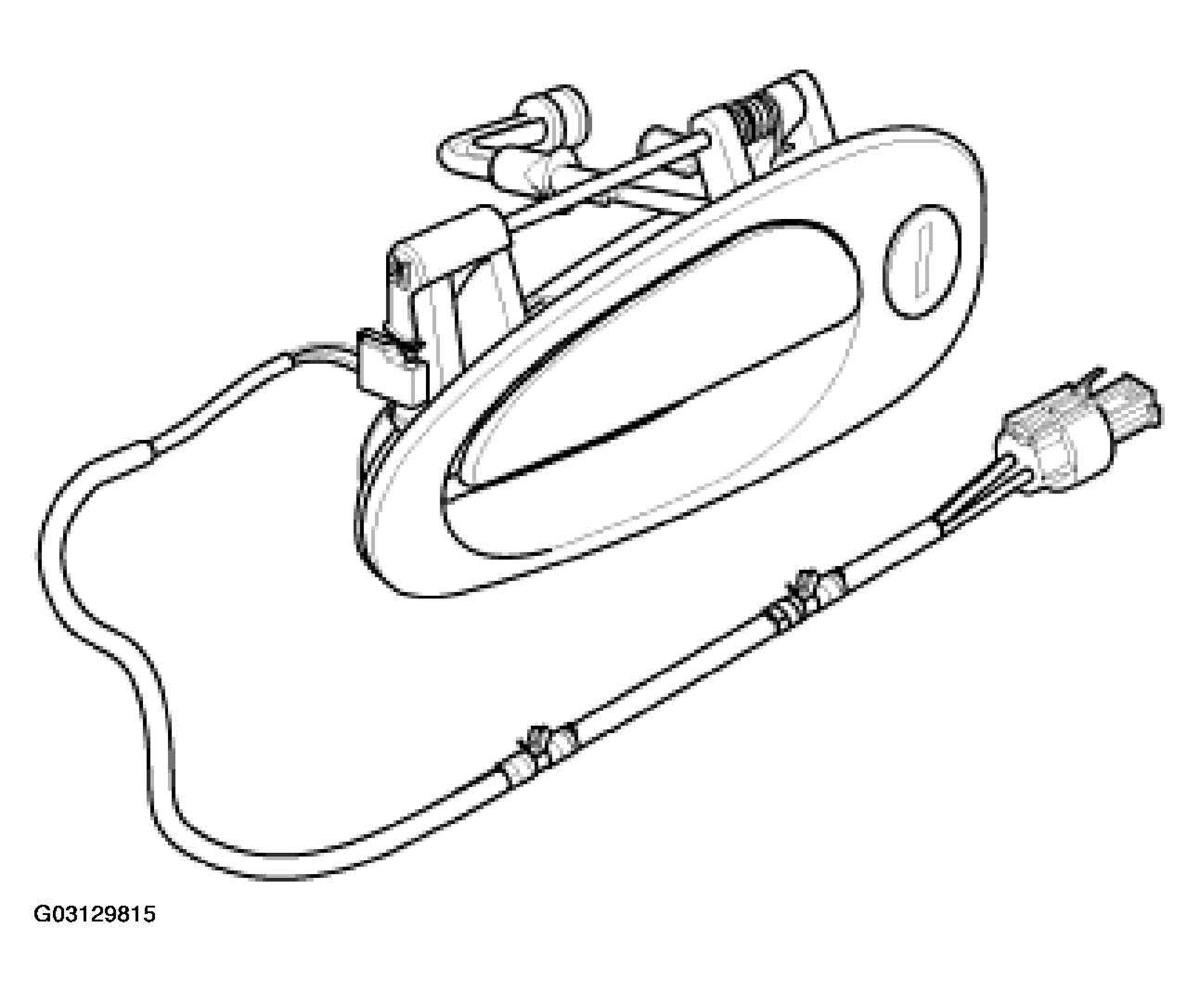

DOOR HANDLE DISASSEMBLING & ASSEMBLING PROCEDURE (STEP 1)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| Refer to REMOVING AND INSTALLING DOOR TRIM PANEL . | Refer to REMOVING AND INSTALLING DOOR TRIM PANEL . | |||
| 1 | M6 collar nut | 2 | Undo. | Tightening torque: 10 Nm (7.5ftlb.) |
CAUTION:
There is a danger of injury if fingers or hands are trapped by the door window when the comfort function is triggered: lower and raise door window!
- When carrying out assembly work in the area of the connection piece -2-, the bottom part of the door handle -15-
and the door lock, the fuse No. 1 in row D must be removed! See Fig 2

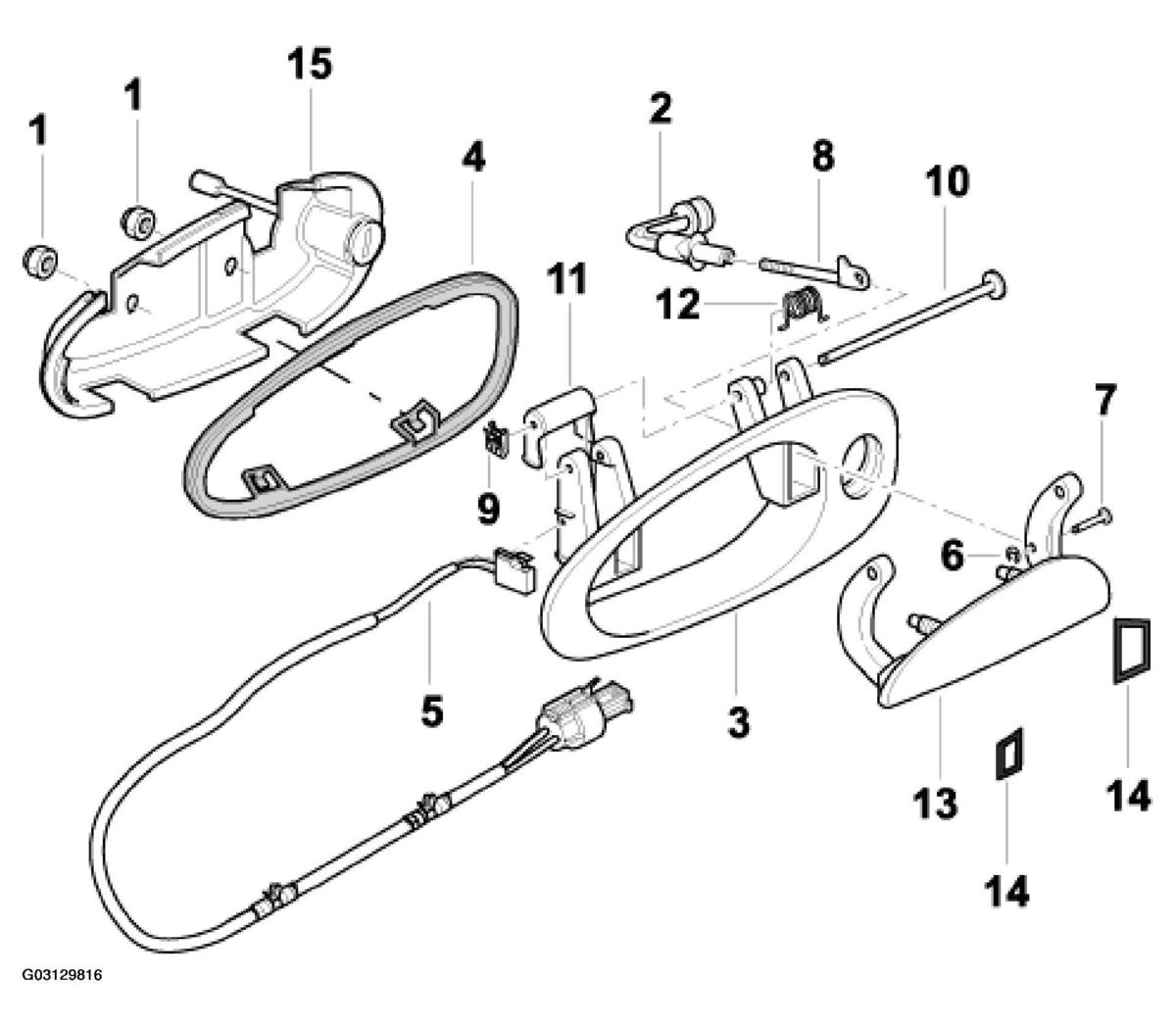

.DOOR HANDLE DISASSEMBLING & ASSEMBLING PROCEDURE (STEPS 2-15)
No. Designation Qty. Removal Installation 2 Connection piece 1 See DISASSEMBLING DOOR . See ASSEMBLING DOOR . 3 Handle liner 1 Pull out handle liner downward at the angle. 4 Base 1 Unclip. Clip in. 5 Microswitch 1 Unclip. Clip in. 6 Circlip 1 Press out. Press in. 7 Pin 1 8 Actuating shaft 1 Pull pin -7-13- . See Fig 2 . Position actuating shaft on the handle -No. 13-7-6- . See Fig 2 . 9 S retainer 1 10 Pin rod 1 Replace. 11 Eccentric 1 12 Return spring 1 13 Handle 1 Pull pin rod -10-3- . See Fig 2 . Position return spring -12-11-3-10-9 . See Fig 2 . 14 Buffer 2 Pull off. Replace 15 Door handle bottom part 1
