Fitting the door window in the clamping jaws

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

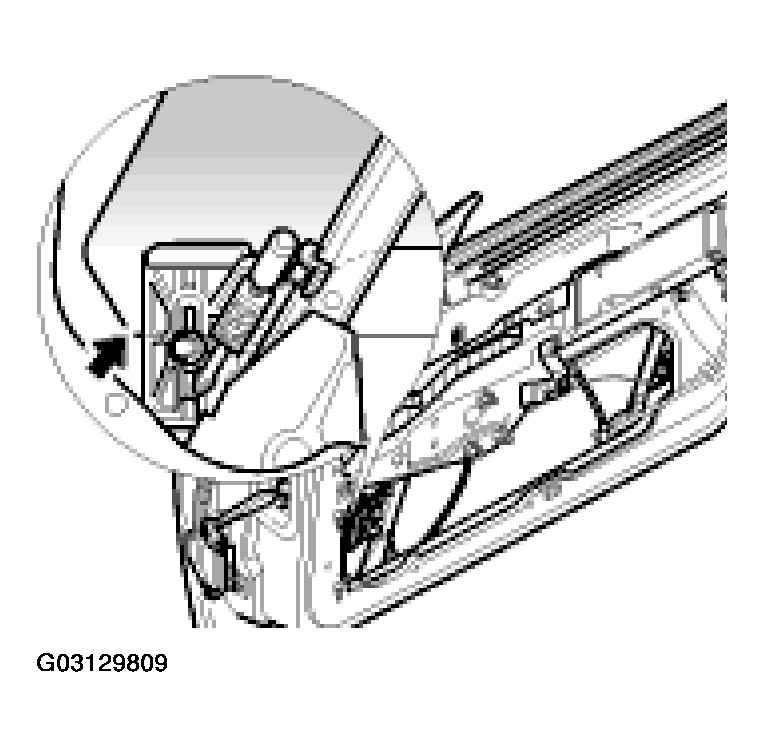

Fig 1: Fitting Door Window In Clamping Jaws
G03129809Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Insert the door window through the door channel into the clamping jaws of the front and rear drivers.
  2. Position the door window corner flush with the driver at front.
    NOTE: The bottom edge of the window must rest on the screw during adjustment.
  3. Tighten the clamping jaws after completing the adjustment.
    1. Tightening torque: 8.5 Nm (6.5 ftlb.)
