Removing lid release motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew both fastening nuts and take out the retaining strip.

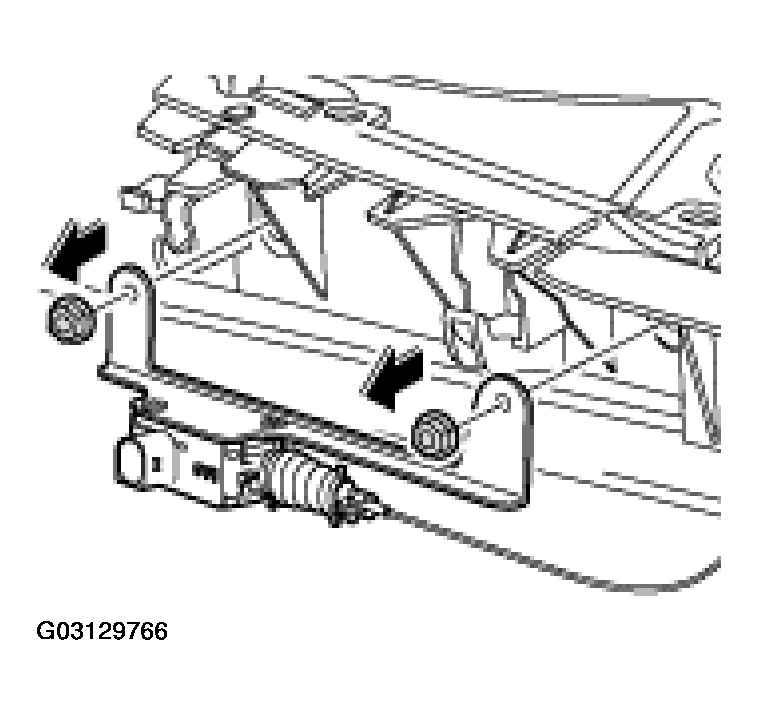

    Fig 1: Unscrewing Both Fastening Nuts And Taking Out Retaining Strip
    G03129766Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Disconnect the electrical plug connection.

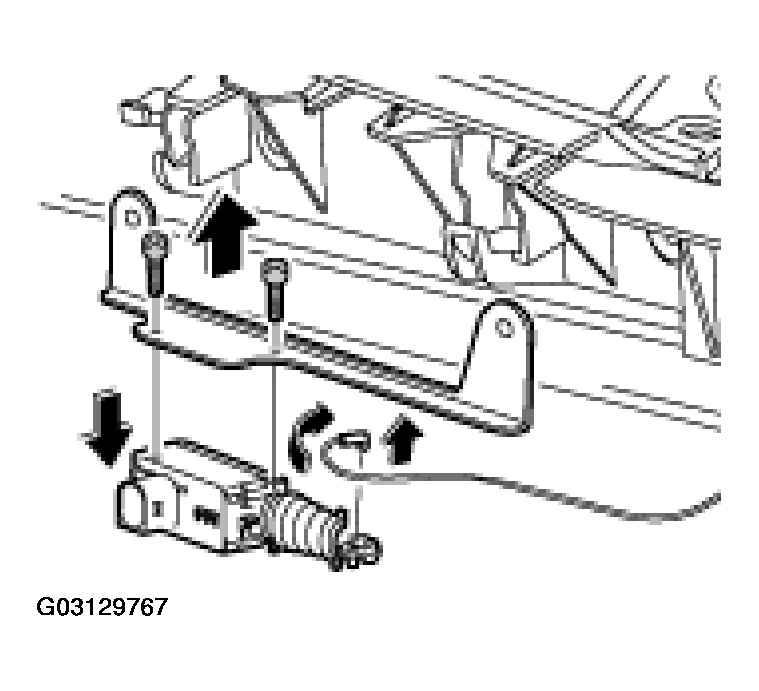

    Fig 2: Disconnecting Electrical Plug Connection From Lid Release Motor
    G03129767Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew the fastening screws and disengage the cable.
