Removing and installing bumper and accessories

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

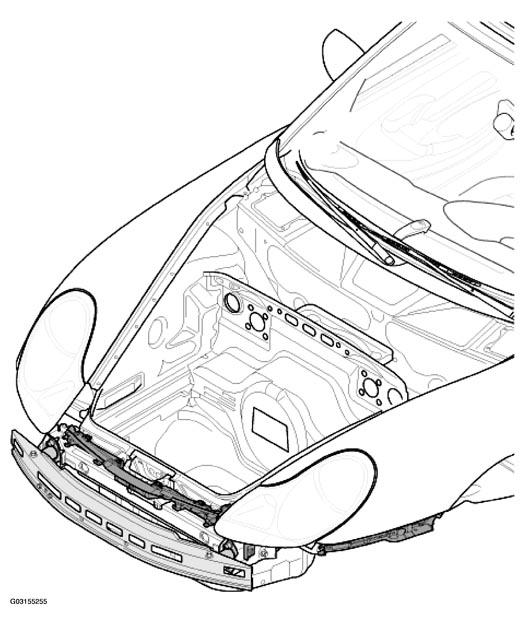

Fig 1: View Of Front Bumper Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

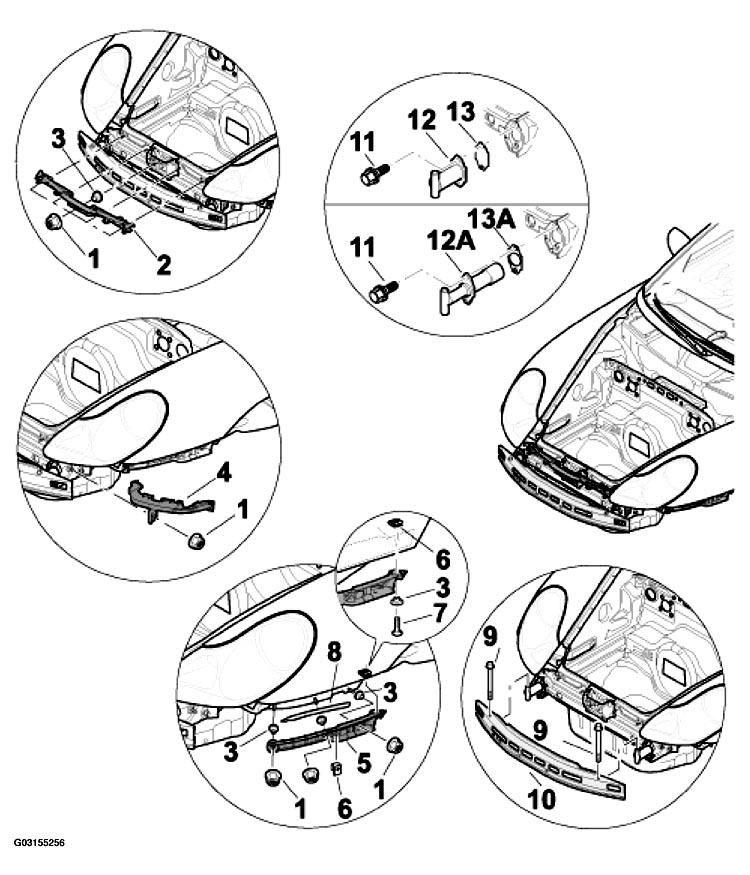

Fig 2: Removing And Installing Front Bumper Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVING & INSTALLING BUMPER & ACCESSORIES PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Collar nut	9		Tightening torque: -10 Nm (7.5 ftlb.)-
2	Retaining strip, centre	1	Undo collar nut -1- . See Fig 2 .	Fix retaining strip onto the transverse lock panel and fasten with the collar nuts -1-10 Nm (7.5 ftlb.)- . See Fig 2 .
3	Spacer sleeve 5.2x14	2
4	Support, left or right.	1	Unscrew the collar nut -1-4- . See Fig 2 .	Clip onto the retaining strip and tightly screw onto the side member with the collar nut -1- . See Fig 2 .
5	Left and right retaining strip	1	Unscrew the collar nut -1-7- . See Fig 2 .	Position retaining strip on the wing upward so that the clearance rib rests against the side section without gaps, and then tighten with the collar nuts -1-7-10 Nm (7.5 ftlb.)-
6	Sheetmetal nut ST 4.8	4		Inspect and replace if necessary.
7	Sheetmetal screw St 4.8x19	2		Tightening torque: -3 Nm (2 ftlb.)-
8	Protective foil left, transparent foil on right	2		Inspect and replace if necessary.
9	Hexagon-head bolt M12x 1.5x100	2		Tightening torque: -85 Nm (63 ftlb.)-
10	Bumper mount -10- . See Fig 2 .	1	Unscrew hexagon-head bolt -9-10- . See Fig 2 .	Attach the bumper mount -10-12, 12A--11- . See Fig 2 .
11	Combination screw M8x30	4	Unscrew.	Tightening torque: -23 Nm (17 ftlb.)-
12	Impact pipe	2	Undo combination screw -11- . See Fig 2 .	Fix the impact pipe to the body with the seal -13-11- . See Fig 2 .
12A	USA version, impact	2	Undo combination screw -11- . See Fig 2 .	Fix the impact absorber to the body with the seal -13A--11- . See Fig 2 .
13	Seal	2		Inspect and replace if necessary.
13A	USA version, impact absorber seal	2		Inspect and replace if necessary.
