Installing lid release motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the cable and position the motor at the holder.

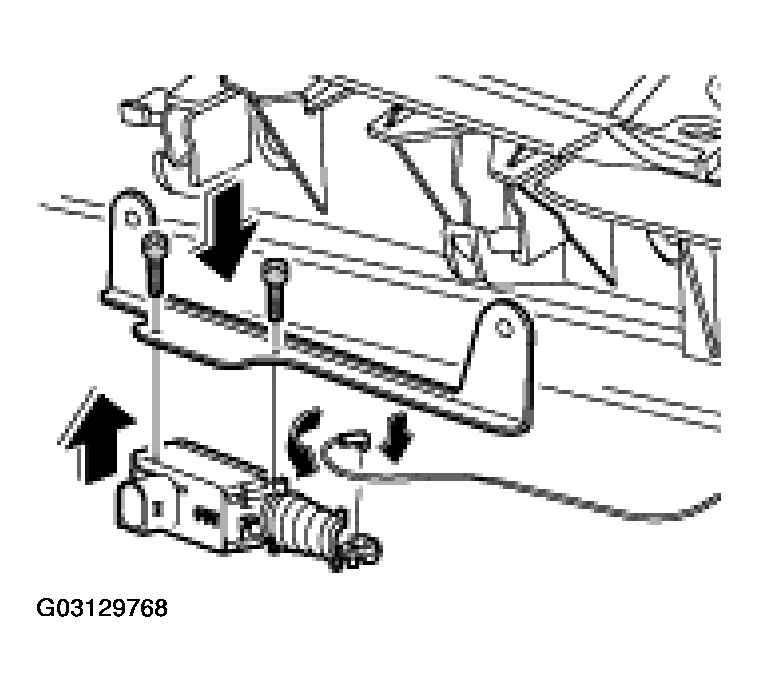

    Fig 1: Engaging Lid Release Motor Cable And Positioning Motor At Holder
    G03129768Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Screw in the fastening screws. Tightening torque 1.5 Nm (1 ftlb.)
  3. Position the holder with the motor on the retaining strip and screw tight with the fastening nuts. Tightening torque 9.7 Nm (7 ftlb.).

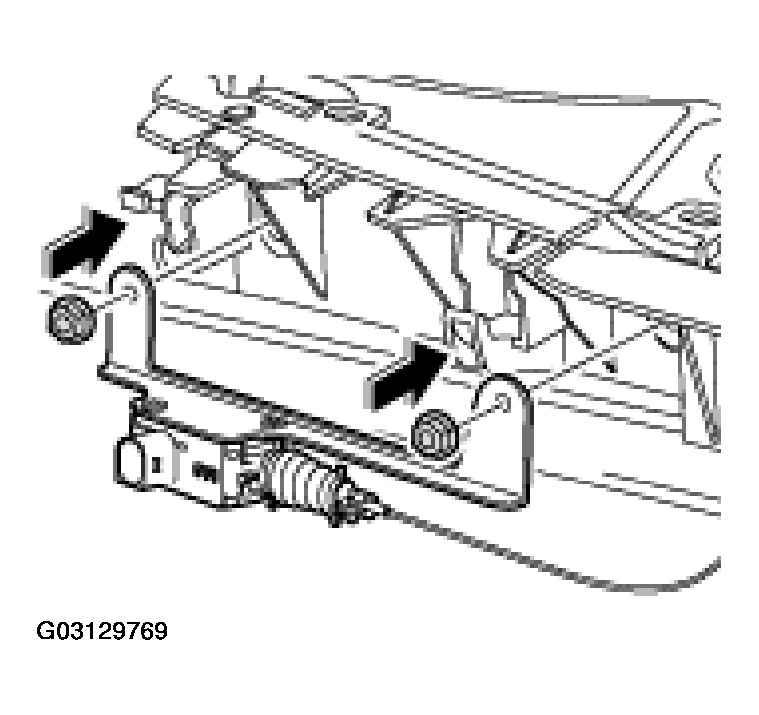

    Fig 2: Positioning Holder With Lid Release Motor On Retaining Strip
    G03129769Courtesy of PORSCHE OF NORTH AMERICA, INC.
