Fill In Transmission Oil

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Top up only with transmission oil approved by Porsche.

Filling capacity: 2.25 liters

Clean oil drainage and oil filler screw.
Screw in oil drain plug.
Tightening torque: 25 Nm (19 ft.lb)
Fill in oil. At a filler quantity of 2.25 liters, the oil level lies 11 mm below the oil filler opening. Check using an angled wire hook.

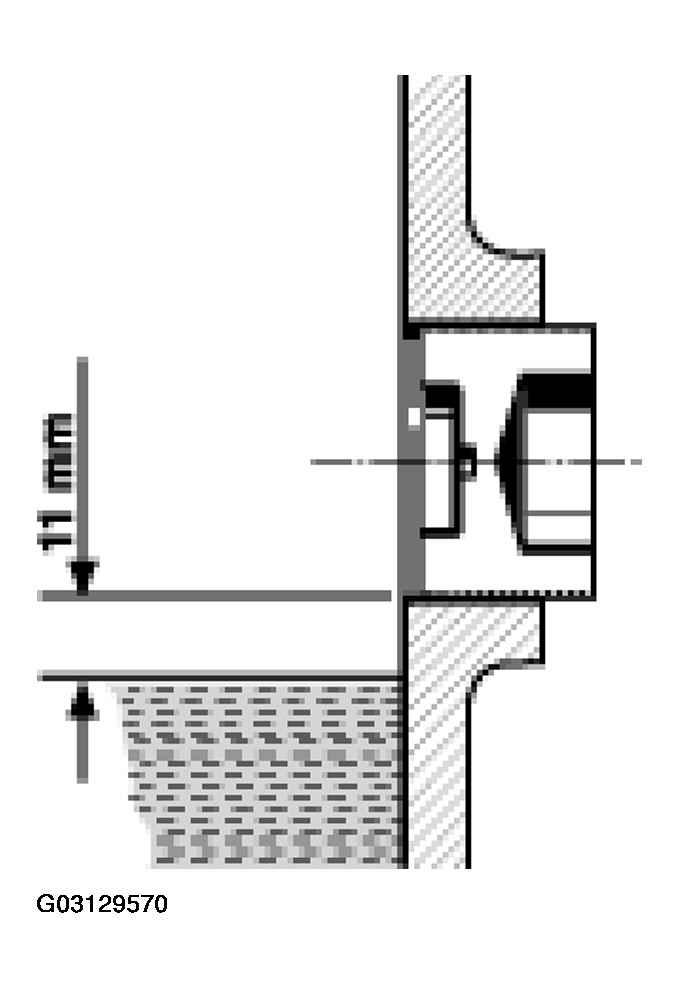

Fig 1: Identifying Fluid Maximum Level In Manual Transmission
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Screw in oil filler screw.
Tightening torque: 25 Nm (19 ft.lb)
Install sheetmetal brace. Refer to REMOVING AND INSTALLING SHEETMETAL BRACE .
