Preparing closing panel and front floor panel for installation and fitting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

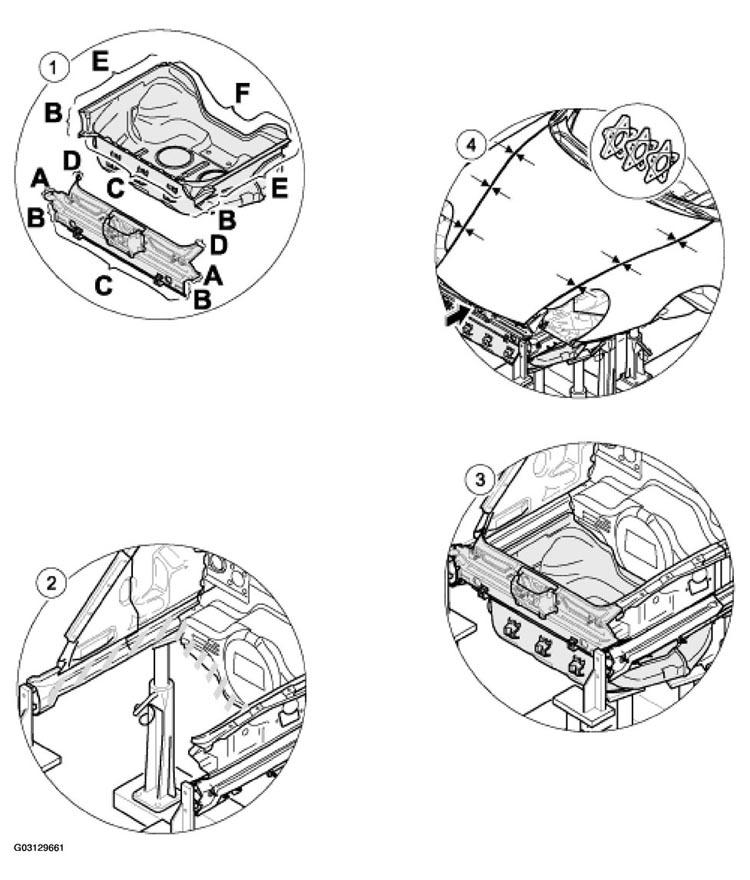

Fig 1: Preparing Closing Panel And Front Floor Panel For Installation And Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CLOSING PANEL REFERENCE (PREPARING)

No.	Procedure	Instructions
1	Preparing spare parts	Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D, E, F,- . See Fig 1 .
2	Cleaning the welding areas	Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush.
3	Fitting the front floor panel in the body and fastening it on the straightening attachments.	Adjust the spare front floor panel to the side members and to the bulkhead. Fasten the spare front floor panel to the straightening attachment for the front-axle mount and diagonal brace. Fasten the side members to the straightening attachment for the impact pipes (impact dampers).
4	Fitting in wings and front lid	Fit the left and right wings and fit in the front lid. Refer to SAFETY INSTRUCTIONS .
