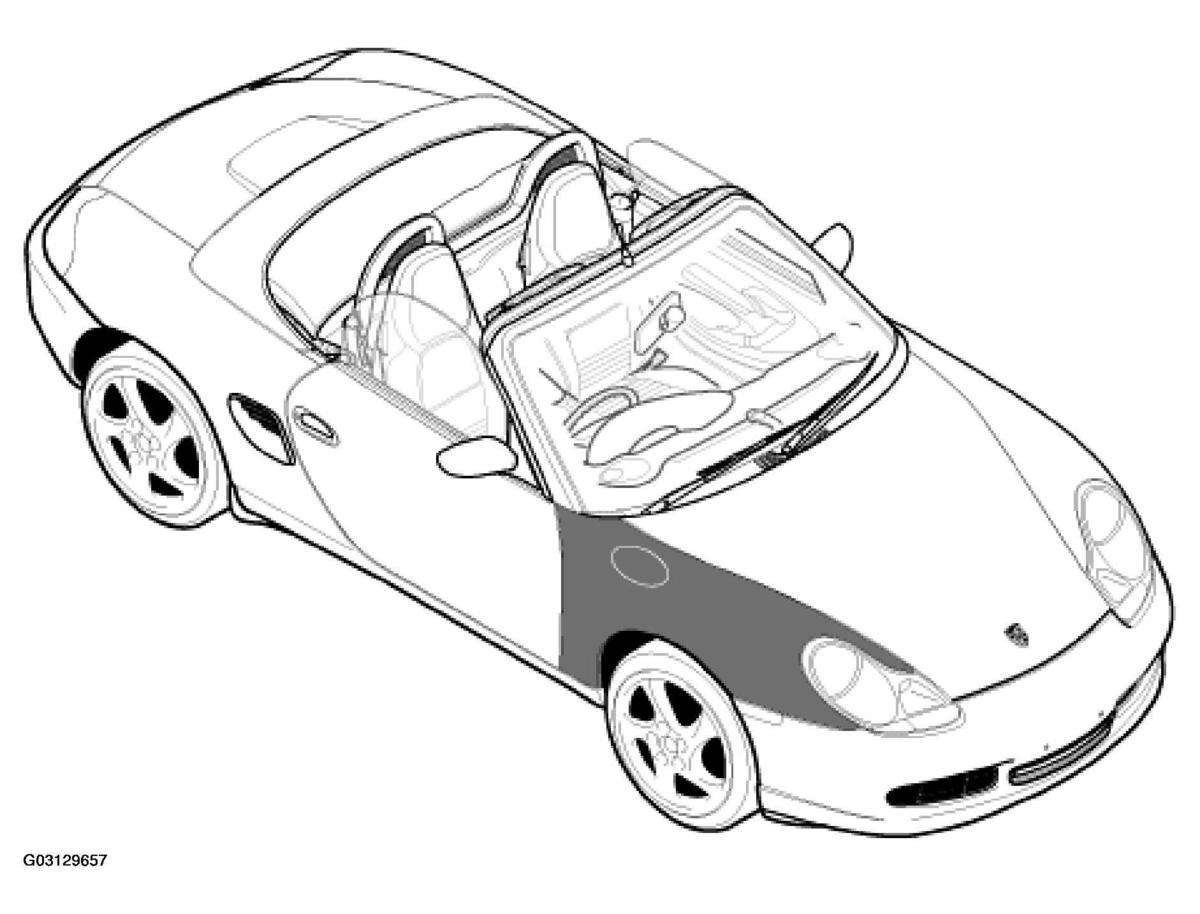

Removing and installing the wing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- Before removing the wing, the following parts must be removed:
- Refer to WHEELS AND TYRES (TYRE PRESSURE / MOUNTING WHEEL ON VEHICLE .
- See REMOVING AND INSTALLING WHEEL HOUSING LINER .
- See REMOVING AND INSTALLING FILLER FLAP .
- Refer to REMOVING AND INSTALLING HEADLIGHTS .
- For the left wing, refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM.

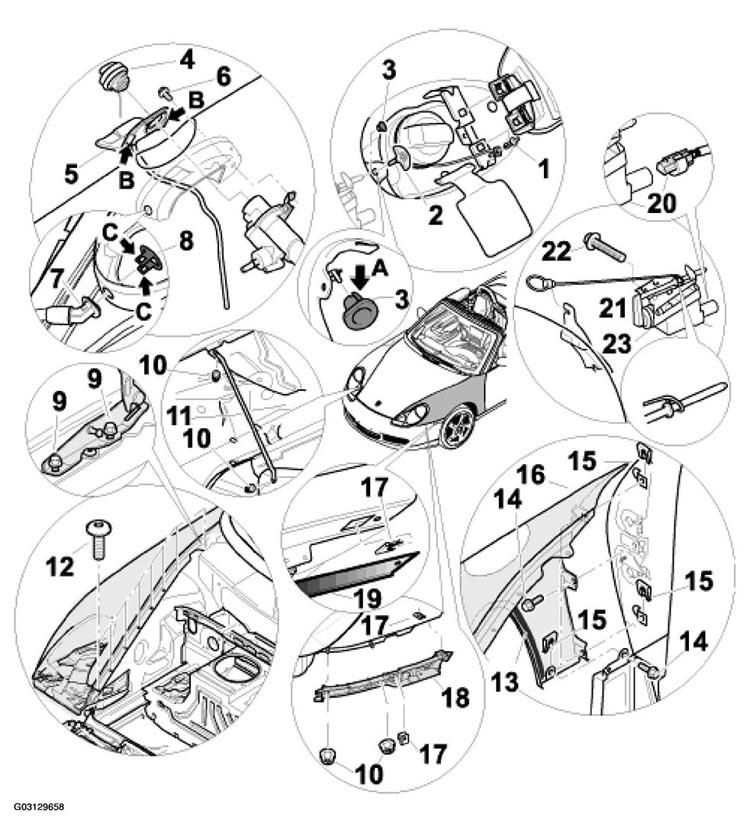

WING REFERENCE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Plastic body-bound rivet 5.0 x 11.5 | 1 | Press out pin in the centre of the rivet head. | |
| 2 | Rubber sleeve | 1 | Pull off. | Press in. |
| 3 | Guide ring | 1 | Press lug -A- . See Fig 2 . | |
| 4 | Tank closure | 1 | ||
| 5 | Sleeve | 1 | Press lugs of the sleeve -B- . See Fig 2 . | |
| 6 | Collar nut M6 x 20 | 1 | Tightening torque: -10 Nm (7.5 ftlb.)- | |
| 7 | Angle piece | 1 | ||
| 8 | Plastic clip | 1 | Press apart lugs -C- . See Fig 2 . | |
| 9 | Collar screw M6 x 20 | 2 | Undo two turns. | |
| 10 | Collar nut M6 | 2 | ||
| 11 | Wing brace | 1 | ||
| 12 | Torx sheetmetal screw T20 | |||
| 13 | Strips of styrofoam | 1 | Remove protective part and stick the styrofoam strips along the wheel cutout. | |
| 14 | Sheetmetal screw St 6.3 x 12 | 4 | ||
| 15 | Sheetmetal nut | 11 | ||
| 16 | Wing | 1 | Pull out downwards at the A-pillar and remove to the front. | Insert the wing under the lid hinge at the front, fit the sheetmetal screws. Adjust the contour and gap dimensions -14,12-
. See Fig 2
. -14, 12- . See Fig 2 . on the front door and lid, securely fasten the sheetmetal screws -14, 12- . See Fig 2 . |
| 17 | Sheetmetal nut -17- . See Fig 2 . | 2 | ||
| 18 | Retaining strip up to model year 2001 | 1 | Loosen the collar nuts -10- . See Fig 2 . | Fix retaining strip on the wing upward to the stop and fasten with the collar nuts -10-10 Nm (7.5 ftlb.)- . See Fig 2 . |
| 19 | Transparent protective film | 1 | Pull off. | Replace. |
| 20 | Electrical plug connection -20- . See Fig 2 . | 1 | Press lug and separate. | Insert the plug until it engages. |
| 21 | Emergency cable | 1 | Disengage. | Engage. |
| 22 | Sheetmetal screw B4.2 x 18.T20 | 2 | Unscrew the sheetmetal screws from the sheetmetal bracket. | Screw the sheetmetal screws into the sheetmetal bracket. |
| 23 | Drive motor | 1 | Pull the drive motor towards the rear and remove from below. | Insert the drive motor from underneath and position towards the front. |
