Water drainage

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Water drainage: Drip tray

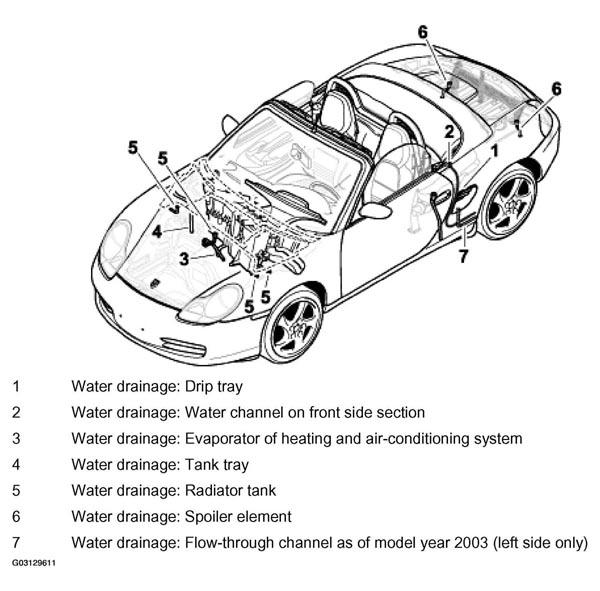

    Fig 1: Identifying Water Drainage
    G03129611Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Water drainage: Water channel on front side section
  3. Water drainage: Evaporator of heating and air-conditioning system
  4. Water drainage: Tank tray
  5. Water drainage: Radiator tank
  6. Water drainage: Spoiler element
  7. Water drainage: Flow-through channel as of model year 2003 (left side only)
