Imprinting new vehicle identification number

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Spacer for replacing the vehicle identification number
1. The spacer for applying the vehicle identification number is in the front, right firewall. Two sections are intended for use.
2. Section 1 -A- is the standard spacer. See Fig 1 .
3. Section 2 -B- is the spare spacer for a corrected vehicle identification number. See Fig 1 .

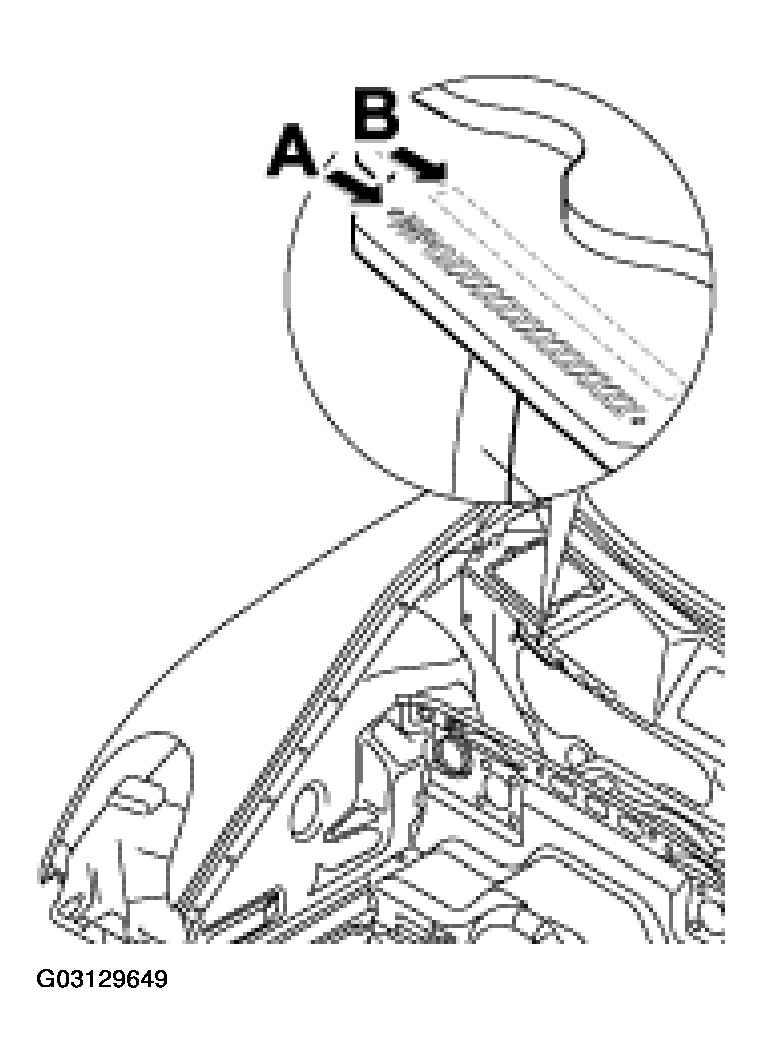

Fig 1: Imprinting New Vehicle Identification Number
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Imprinting new vehicle identification number

NOTE:

Only imprint vehicle identification number in a cathodic-dip coated sheetmetal part.
The area should be countered when imprinting the vehicle identification number.

Stamp the vehicle identification number to be replaced into the spacer with an 8 mm number embossing tool and the Porsche star.
Mask imprinted vehicle identification number.
Apply exterior paintwork.
Remove the vehicle identification number mark.
Paint repair area with clear lacquer.

Cathodic dip coating is the primer applied to the sheetmetal parts at the factory.
