Section 18 (General Information - Body): Undersealing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

In the case of repair work, the standard stone shield / undersealing of the body structure must be restored before painting or unit assembly, according to the following illustrations.
The undersealing can only be applied to primed sheetmetal.

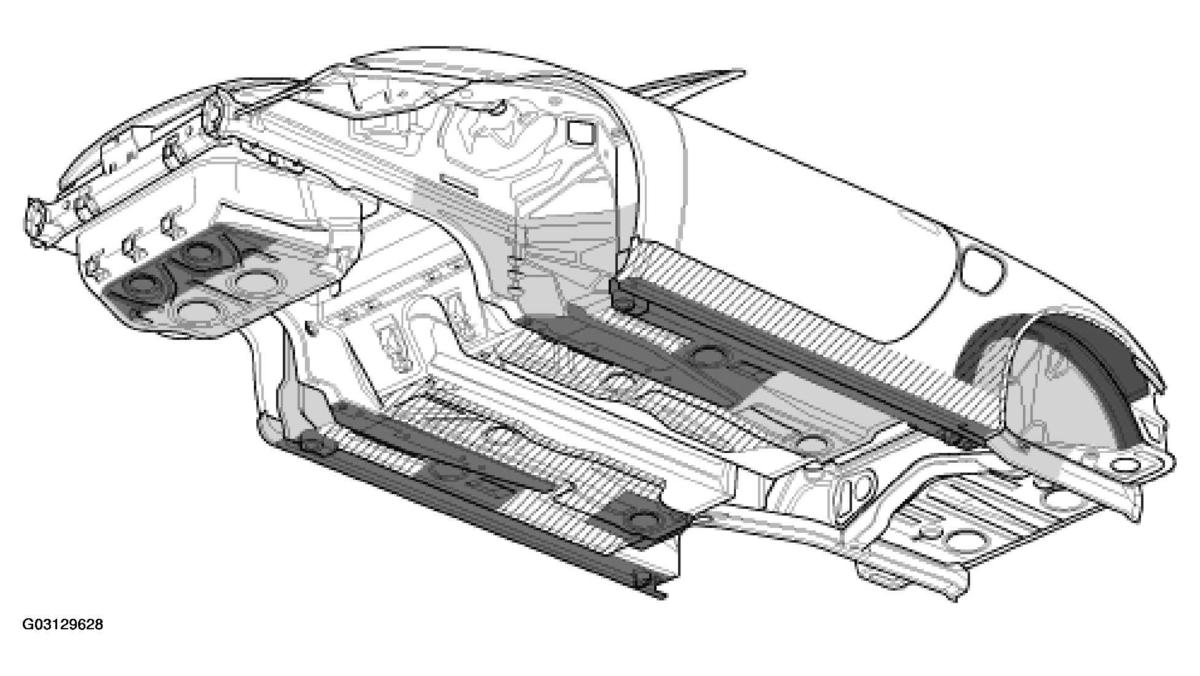

Fig 1: Identifying Undersealing

Courtesy of PORSCHE OF NORTH AMERICA, INC.
