Metalworking tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

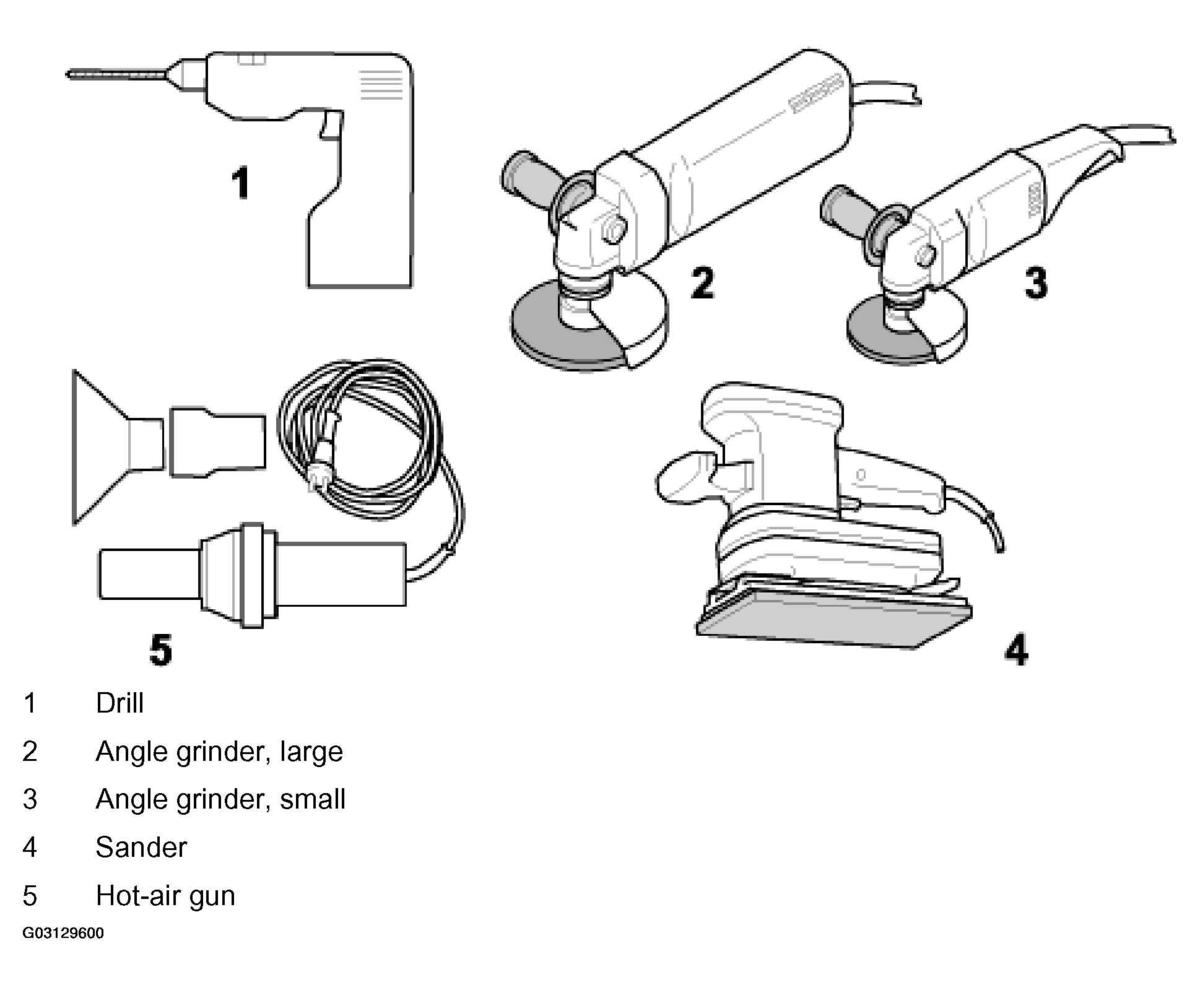

Fig 1: Identifying Metalworking Tools - Electrical Equipment
G03129600Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Drill
  2. Angle grinder, large
  3. Angle grinder, small
  4. Sender
  5. Hot-air gun
  6. Hole punch
  7. Edge setter

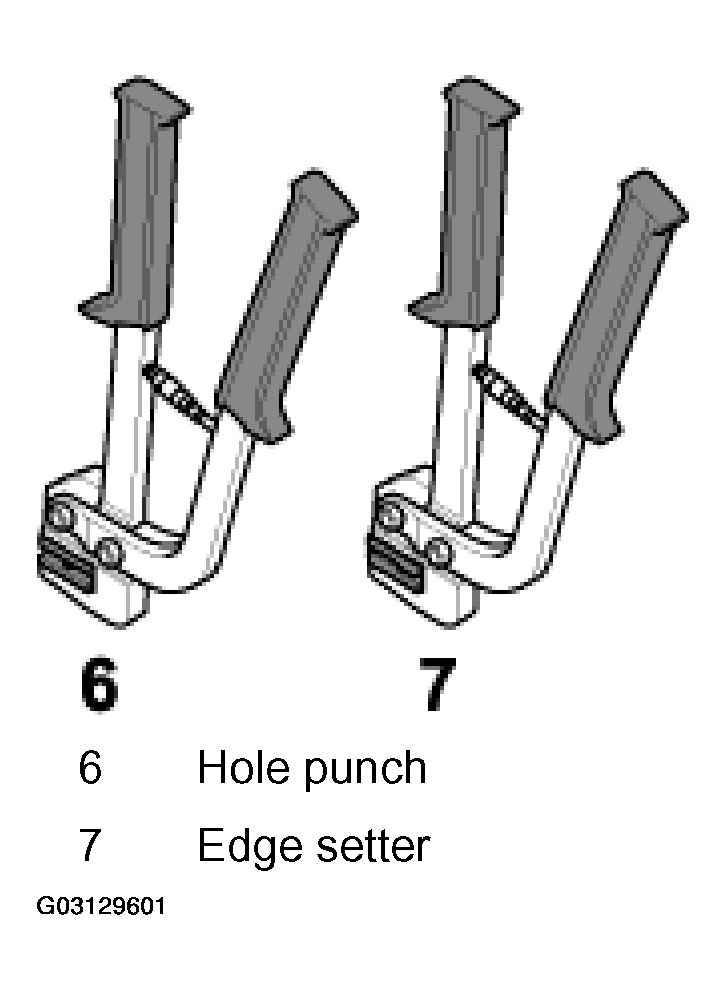

    Fig 2: Identifying Metalworking Tools - Mechanical Equipment
    G03129601Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Air chisel

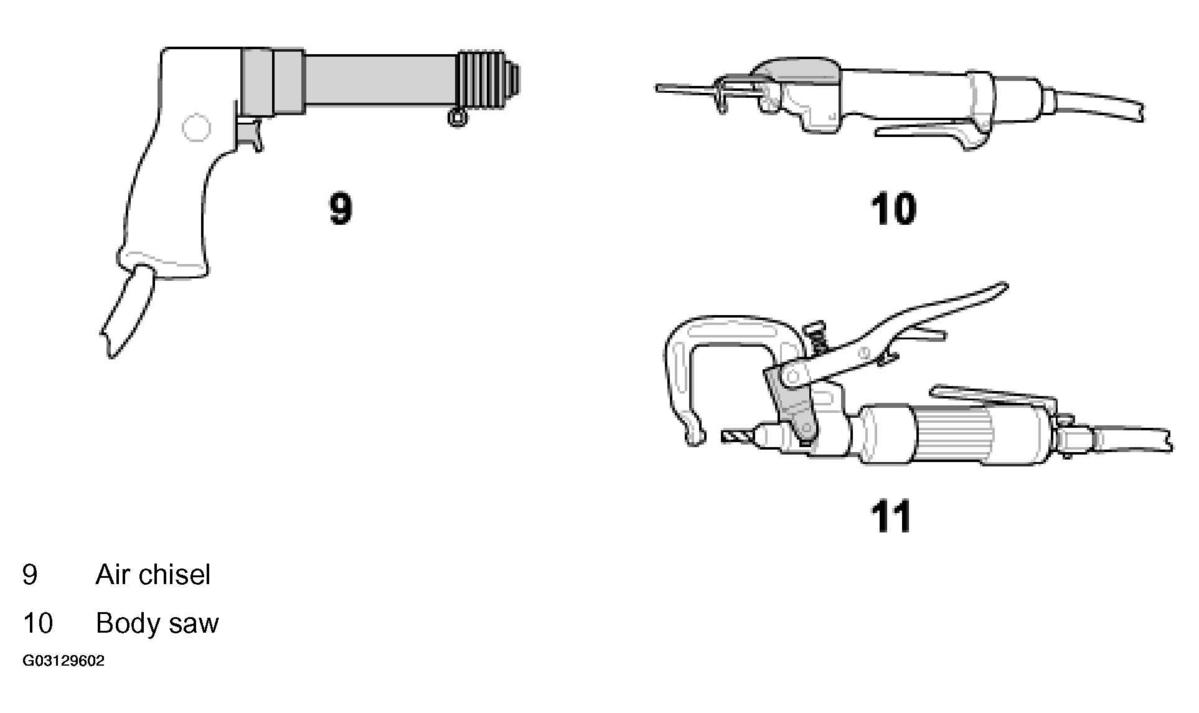

    Fig 3: Identifying Metalworking Tools - Compressed-Air Equipment
    G03129602Courtesy of PORSCHE OF NORTH AMERICA, INC.
  9. Body saw
  10. Spotweld cutter
  11. Multispot spotwelder
  12. MIG welder

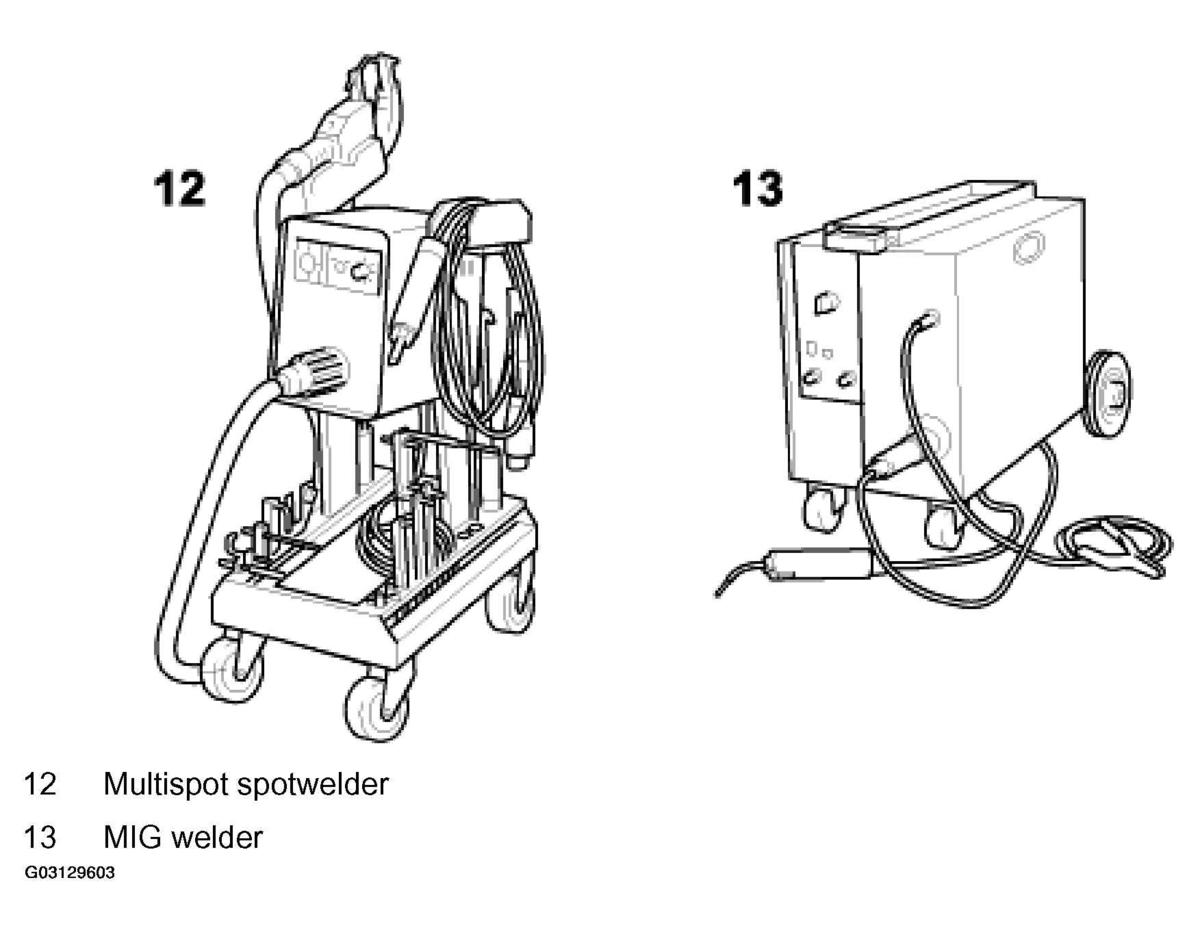

Fig 4: Identifying Metalworking Tools - Welding Equipment
G03129603Courtesy of PORSCHE OF NORTH AMERICA, INC.
