Rear of vehicle, luggage compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

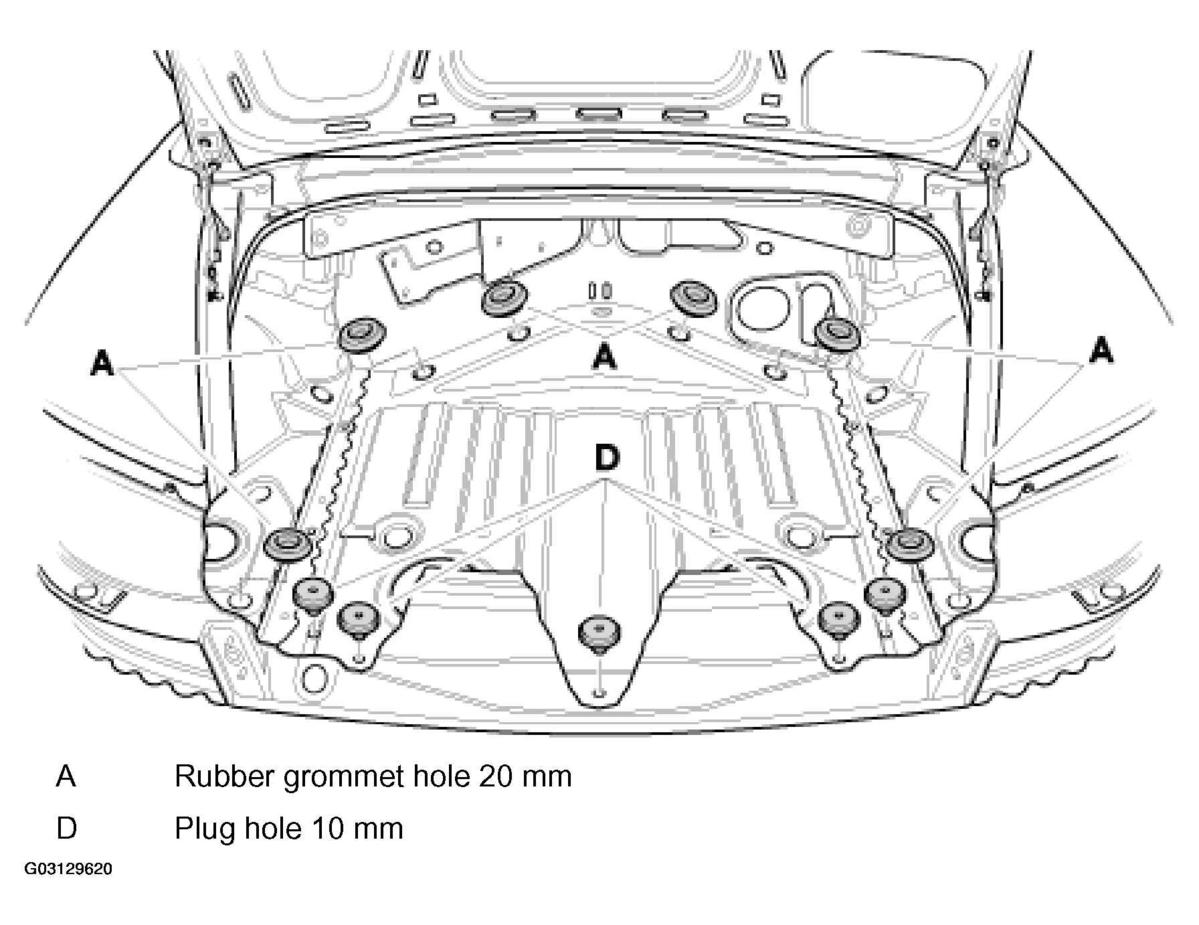

Fig 1: Identifying Rear Of Vehicle, Luggage Compartment - Plug Location Plan
G03129620Courtesy of PORSCHE OF NORTH AMERICA, INC.
