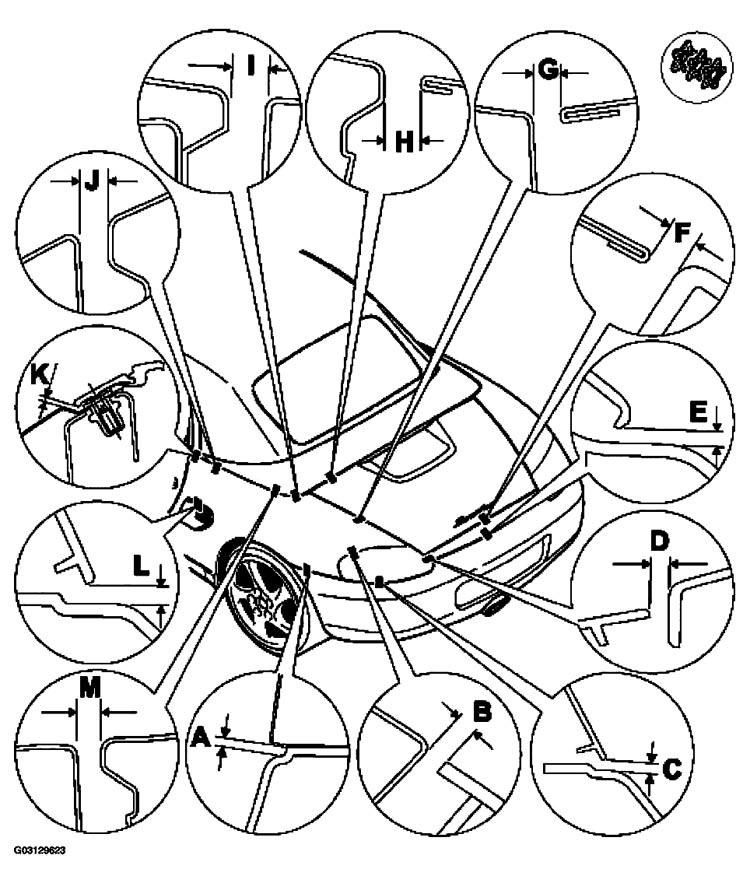

BODY REAR GAP DIMENSIONS
| Designation | Dimension | Note | |
|---|---|---|---|
| Rear trim to outer side section | -A- | 3+/-0,5 mm | Gap is evident |
| Tail light to outer side section | -B- | 3+/-0,5 mm | |
| -C- | 4,5+/-1 mm | Tail light only lowered | |
| Tail light to spoiler | -D- | 4,5+/-0,5 mm | |
| Rear trim to spoiler | -E- | 3+/-1 mm | |
| Rear lid to spoiler | -F- | 5-0,5 | |
| Rear lid to side section | -G- | 4,5+/-1 mm | Determine left to right |
| Rear lid to convertible-top compartment lid | -H- | 6-0,5 mm | Rear cover only lowered |
| Side part to convertible-top compartment lid | -I- | 6-0,5 mm | Convertible-top compartment lid only raised (max. 2 mm) |
| Side section to convertible-top compartment lid | -J- | 6-0,5 mm | Convertible-top compartment lid only raised (max. 1 mm) |
| Trim of Roof Transport System to side section | -K- | 2+/-0,5 mm | Trim only lowered (max. 0.5 mm) |
| Engine compartment vent to side section | -L- | 1,5+/-0,5 mm | |
| Side section to convertible-top compartment lid | -M- | 4,5+/-1 mm | Convertible-top compartment lid only raised (max. 1 mm) Determine gap |
