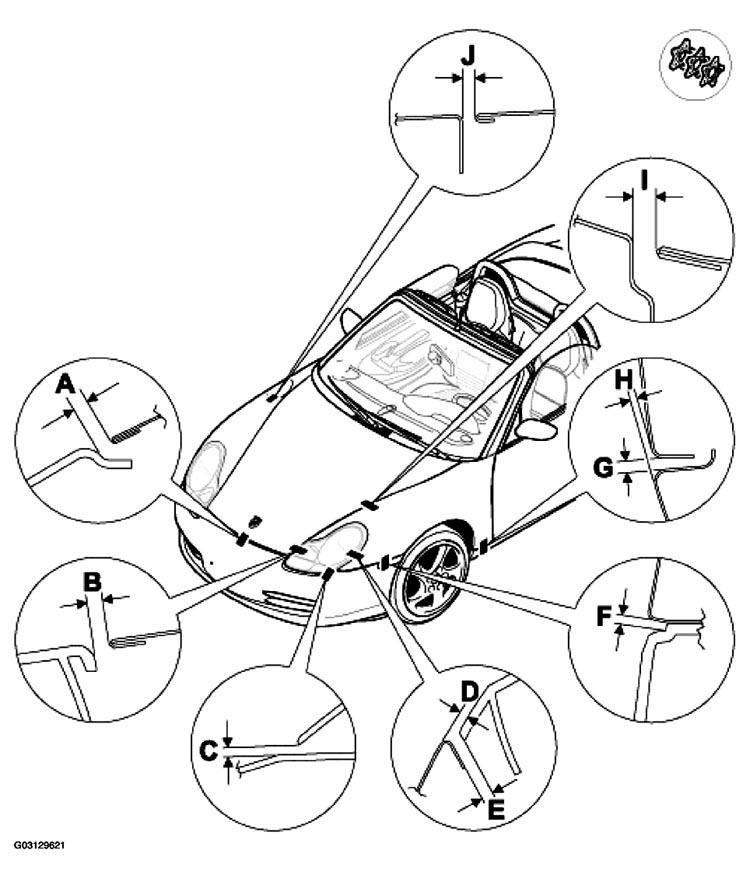

BODY FRONT GAP DIMENSIONS
| Designation | Dimensions | Note | |
|---|---|---|---|
| Front cover to front trim | -A- | 5,8-1 mm | Cover only lowered (max. 1 mm) |
| Front cover to modular headlight | -B- | 4,5 mm | Determine left to right joint Even seam joining line to point C |
| Modular headlight to front trim | -C- | 4,5 mm | Even seam joining line to point B |
| Modular headlight to wing | -D- | 2-1, 5 mm | |
| Modular headlight to wing | -E- | 4.5-0.5 mm | |
| Wing to front trim | -F- | 3+/-0,5 mm | Gap is evident |
| Front wing to outer side section | -G- | 4,2-0.5 to 4-0.5 mm | Even transition from front to rear |
| Front wing to outer side section | -H- | 1,4+/-0,5 mm | |
| Wing to front cover | -I- | 4+/-0,5 mm | Determine gap left to right |
| Filler flap to wing | -J- | 3,5+/-1 mm | All the way round |
