Gap dimensions, body center
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

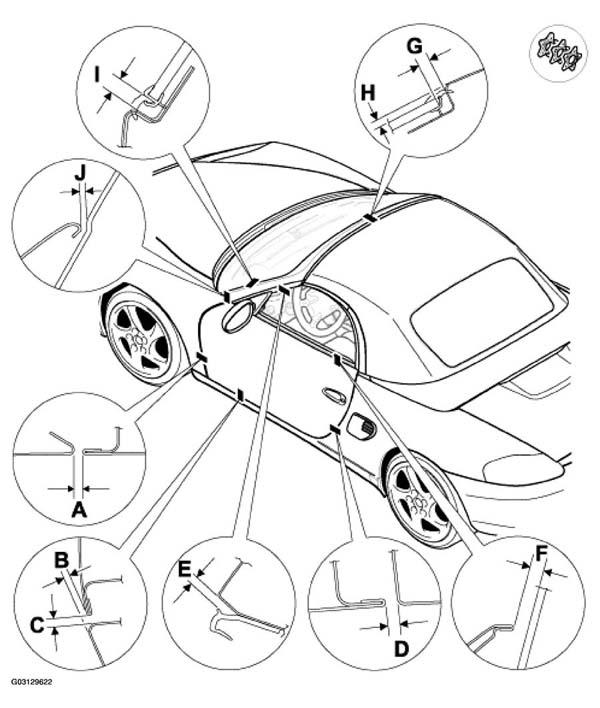

BODY CENTER GAP DIMENSIONS
| Designation | Dimension | Note | |
|---|---|---|---|
| Door to front wing | -A- | 5 + 1 mm | Door only lowered (max. 1 mm) |
| Door to outer side section | -B- | 1,6 +/-1 mm | Doors only lowered |
| Door to outer side section | -C- | 4,4-0,5 mm | |
| Door to outer side section | -D- | 4-0,5 mm | Doors only raised |
| Windshield frame to seal | -E- | 3,5+15 mm | |
| Outer door panel to door window | -F- | 7+/-1,5 mm | |
| Windshield to windshield frame | -G- | 8,5+/-0,-2 mm | |
| Windshield to windshield frame | -H- | Only lowered | |
| Cowl panel frame to side windshield | -I- | 7,5-1 | |
| Cowl panel frame to fender | -J- | 3.5 to 7.0+/-1 mm | Continuous transition |
