Diagram of safety passenger compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Roll-over bar

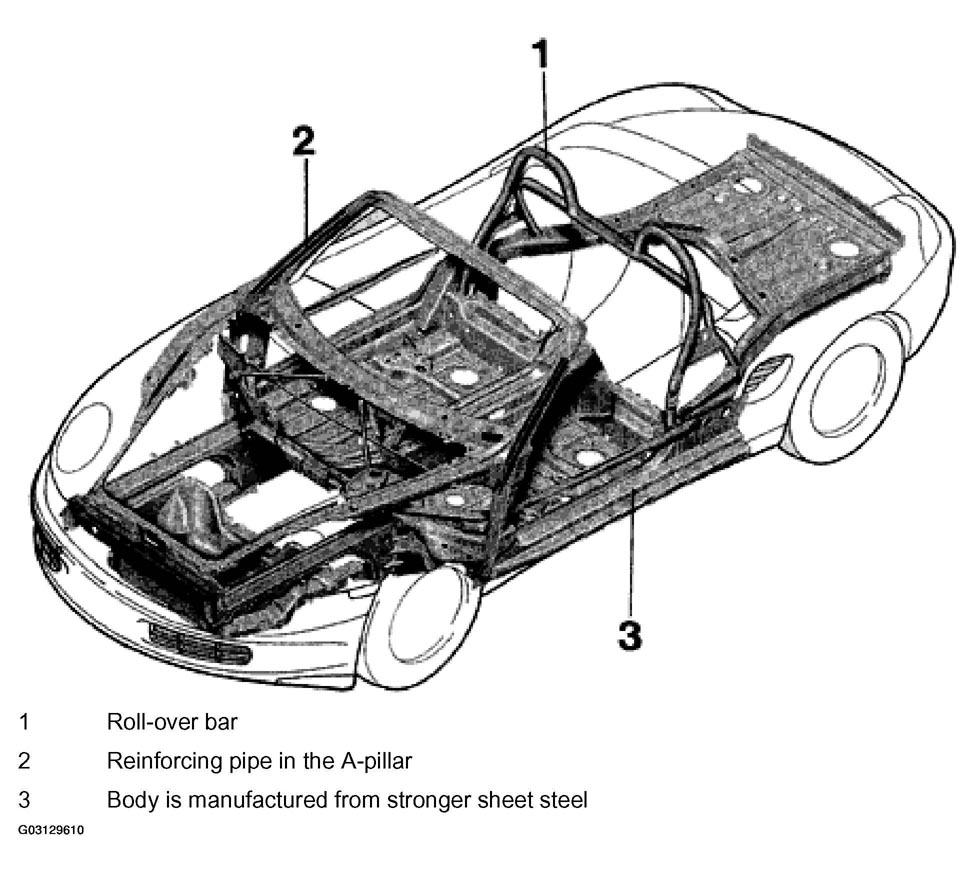

    Fig 1: Diagram - Safety Passenger Compartment
    G03129610Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Reinforcing pipe in the A-pillar
  3. Body is manufactured from stronger sheet steel
