Floorpan check dimensions
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All dimensions are measured to the middle of the hole or screwed point. The dimensions are measured directly, and therefore, are oblique dimensions. Dimensions in brackets are measured horizontally.

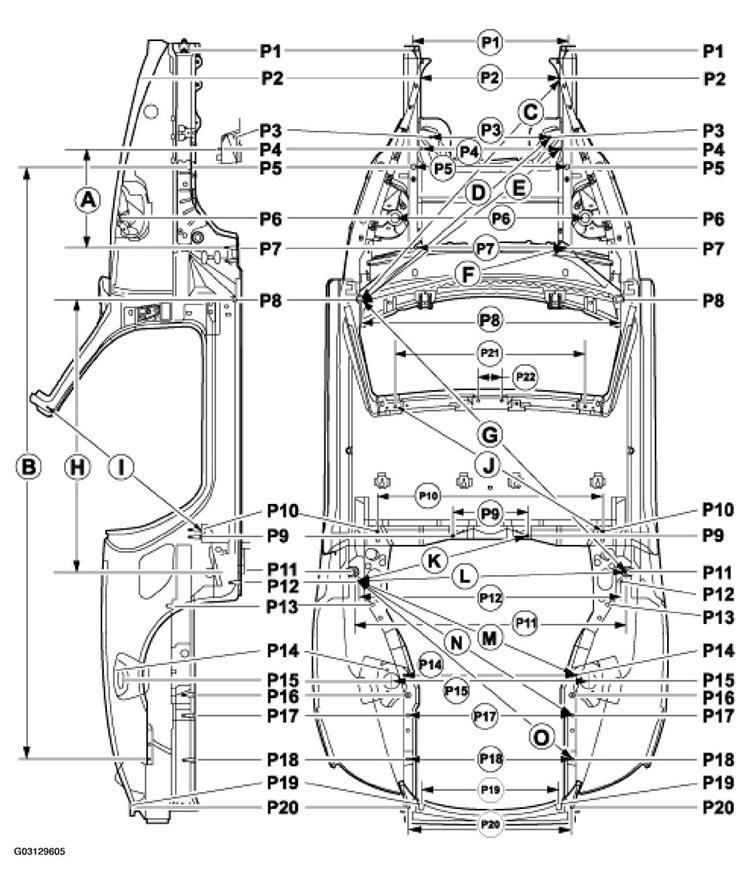

FLOORPAN CHECK DIMENSIONS
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P1 | P1 - P1 | Impact absorber/ pipe front | 800+/-2 |
| P2 | P2 - P2 | Bearer side spare-wheel well | 712+/-2 |
| P3 | P3 - P3 | Front axle front, front, low | 610+/-1 |
| P4 | P4 - P4 | Front axle front, rear, high | 731,2+/-1 |
| P5 | P5 - P5 | Rational location hole, side member front | 800+/-1 |
| P6 | P6 - P6 | Spring strut bracket, front | 985+/-2 |
| P7 | P7 - P7 | Front axle front, rear | 773+/-1 |
| P8 | P8 - P8 | Front jacking point for hoist or car jack | 1330+/-2 |
| P9 | P9 - P9 | Engine mount location | 377+/-2 |
| P10 | P10 - P10 | Roll-over bar mount | 1132+/-2 |
| P11 | P11 - P11 | Rear jacking point for hoist or car jack | 1375+/-2 |
| P12 | P12 - P12 | Diagonal brace, front | 1320+/-2 |
| P13 | P13 - P13 | Roll-over bar screwed point | 1104,5+/-2 |
| P14 | P14 - P14 | Rear axle screwed point, front | 870+/-2 |
| P15 | P15 - P15 | Spring strut bracket, rear | 998,2+/-2 |
| P16 | P16 - P16 | Rational location hole, side member rear | 826+/-2 |
| P17 | P17 - P17 | Rear axle screwed point, rear | 824+/-2 |
| P18 | P18 - P18 | V-strut pickup point | 824,1+/-1 |
| P19 | P19 - P19 | Rear spoiler guide | 690+/-2 |
| P20 | P20 - P20 | Impact absorber/ pipe rear | 824 +/-2 |
| P21 | P21 - P21 | Convertible-top positioning screwed point | 654,5+/-2 |
| P22 | P22 - P22 | Convertible-top lock screwed point | 110+/-2 |
| A | P4 - P7 | In vehicle's longitudinal direction | 507+/-1,5 |
| B | P5 - P18 | In vehicle's longitudinal direction | 2700+/-1 |
| C | P8 - P2 | Vehicle diagonal dimension | 1525+/-2 |
| D | P8 - P3 | Vehicle diagonal dimension | 1279+/-2 |
| E | P8 - P4 | Vehicle diagonal dimension | 1279+/-2(1283+/-2) |
| F | P8 - P7 | Vehicle diagonal dimension | 1084+/-2 |
| G | P8 - P11 | Vehicle diagonal dimension | 1929+/-2 |
| H | P8 - P11 | In vehicle's longitudinal direction | 1375+/-2 |
| I | P10 - P21 | In vehicle's longitudinal direction, slant between cowl panel frame and screwed point | 1010,2 |
| J | P10 - P21 | Vehicle diagonal dimension, slant between cowl panel frame and screwed point | 1213,4 |
| K | P12 - P9 | Vehicle diagonal dimension | 855,5 (880;2) |
| L | P12 - P11 | Vehicle diagonal dimension | 1348,8 (1348,6) |
| M | P12 - P14 | Vehicle diagonal dimension | 1223,8 (1197,9) |
| N | P12 - P17 | Vehicle diagonal dimension | 1299,2 (1274,9) |
| O | P12 - P18 | Vehicle diagonal dimension | 1430,1 (1408,5) |
MEASURING POINT DESIGNATION
| Measuring point | Designation |
|---|---|
| P1 | Impact absorber/pipe screwed point (M8 thread) |
| P2 | Bearer side spare-wheel well screwed point (M8 thread) |
| P3 | Front axle, front screwed point low (thread M12x1.5) |
| P4 | Front axle, front screwed point high (thread M14x 1.5) |
| P5 | Rational location hole, side member front |
| P6 | Spring strut bracket, front |
| P7 | Front axle rear screwed point (thread M14x1.5) |
| P8 | Hoist/car jack front location hole |
| P9 | Engine mount front screwed point (M10 thread) |
| P10 | Over-roll bar front screwed point (M8 thread) |
| P11 | Hoist/car jack rear location hole |
| P12 | Diagonal brace front screwed point (M10 thread) |
| P13 | Over-roll bar front screwed point (M8 thread) |
| P14 | Rear axle front screwed point (thread M10x 1.5) |
| P15 | Spring strut bracket, rear |
| P16 | Rational location hole, side member rear |
| P17 | Rear axle rear screwed point (thread M10 x 1.5) |
| P18 | V-strut pickup point (thread M10) |
| P19 | Rear spoiler guide screwed point (M6 thread) |
| P20 | Impact absorber/pipe screwed point (M8 thread) |
| P21 | Convertible-top positioning screwed point |
| P22 | Convertible-top lock screwed point |
