The following body parts are made of high-strength steel (HS).
- Bearer side at space-wheel well, left and right
- Connection bracket inner to side member front inner left and right
- Side member front inner, left and right
- Web plate outer side member front outer left and right
- Side member front outer, left and right
- Cowl panel frame top, inner
- Cowl panel frame bottom, outer
- Cowl panel frame bottom, inner
- A-pillar reinforcement, left and right
- Side member floor front bottom, left and right
- Bearer floor front top, left and right
- Front crash support
- Closing part front crash support
- Tunnel reinforcement
- Seat support, left and right
- Cross member firewall, inner
- Firewall
- A-pillar reinforcement
- Side member rear outer, left and right
- Impact absorber mount
- Side member rear inner, left and right
- Web plate
- Reinforcement cross member firwall,front
- Reinforcement cross member firwall inner left
- Reinforcement cross member firwall inner right

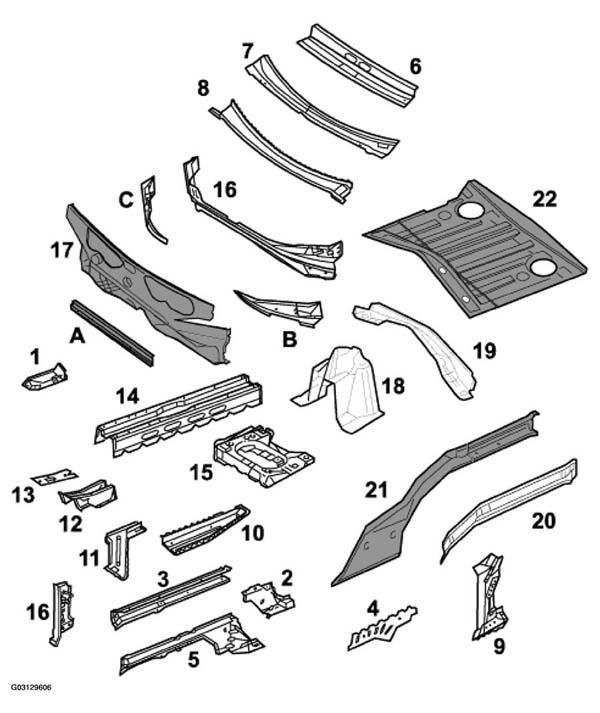

- Body parts -17, 21- and -22- are welded together from plates of different material thicknesses and characteristics and are then deep drawn! See Fig 1 .
- Body parts -A-, -B- and -C- possess extremely high tensile strength and are therefore not hot-dip galvanized! See Fig 1 .
- Body parts -1 to 22- attain their final strength only after the production stage of cathodic immersion painting and drying!
- The special material properties have effects on body repair. For this reason, only "Original Porsche parts" must be used for repair work!
