Diagram - Body, model year 2002

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

In the model year 2001 (model care), the following structural body parts have been used in the body for passive safety. As of model year 2002, all vehicles will be constructed with the structural parts shown in the following diagram.

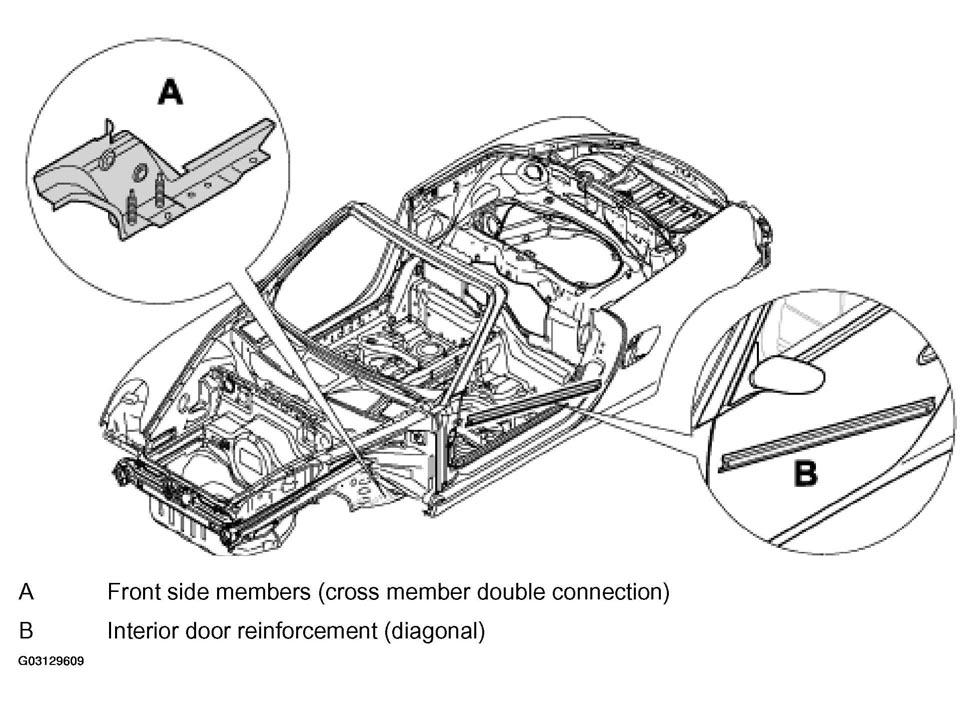

Fig 1: Diagram - Body, As Of Model Year 2002
G03129609Courtesy of PORSCHE OF NORTH AMERICA, INC.
