Overview Of Bellows Conversion
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

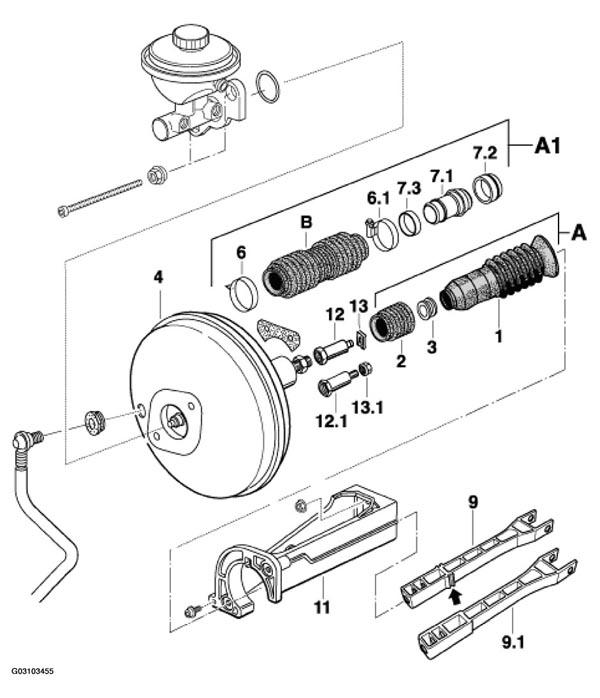

- To convert the bellows variant -A- to version -A1- , the hydraulic unit, the brake booster -4- with brake master cylinder and the intermediate piece -11- must be removed. See Fig 1 .
- The assembly of the brake master cylinder with the brake booster -4- must not be disconnected for removal and installation if both parts should be continued to be used! See Fig 1 .
- To remove the intermediate piece -11- , the battery must be removed! See Fig 1 . This will prevent damage of the components in the surrounding area.
- The following parts must be exchanged or replaced for first installation of variant -A1- (replacement): see Fig 1 .
- Remove short bellows -2- on the brake booster and the long bellows -1- on the firewall. See Fig 1 .
- Remove the grommet (rubber groove ring) -3- for mounting the long (former) bellows (not replaced). See Fig 1 .
- The following parts are used in place of the removed parts -1/2/3- : Bellows -B- (already mounted on new brake boosters), connection sleeve -7.1- with sealing ring -7.3- , the seal for the firewall -7.2- and the hose clamps (clamps) -6 and 6.1- . See Fig 1 .
- The two push rods -12 and 9- are to be replaced with the modified version -12.1 and 9.1- See Fig 1 .
- Additional assembly - Boxster model '97: The brake pedal must be replaced in addition to the new push rod -9.1- in Boxster model year '97 see ADDITIONAL ASSEMBLY - BOXSTER MODEL '97 . See Fig 1 .
Difference in the push rods:
