Additional Assembly - BOXSTER Model '97

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Brake pedal -14- must be replaced by -14.1- in addition to the new push rod -9.1- in Boxster model year '97. The figure shows 1 brake pedal with old -14- and new -14.1- push rod connection. See Fig 1 .

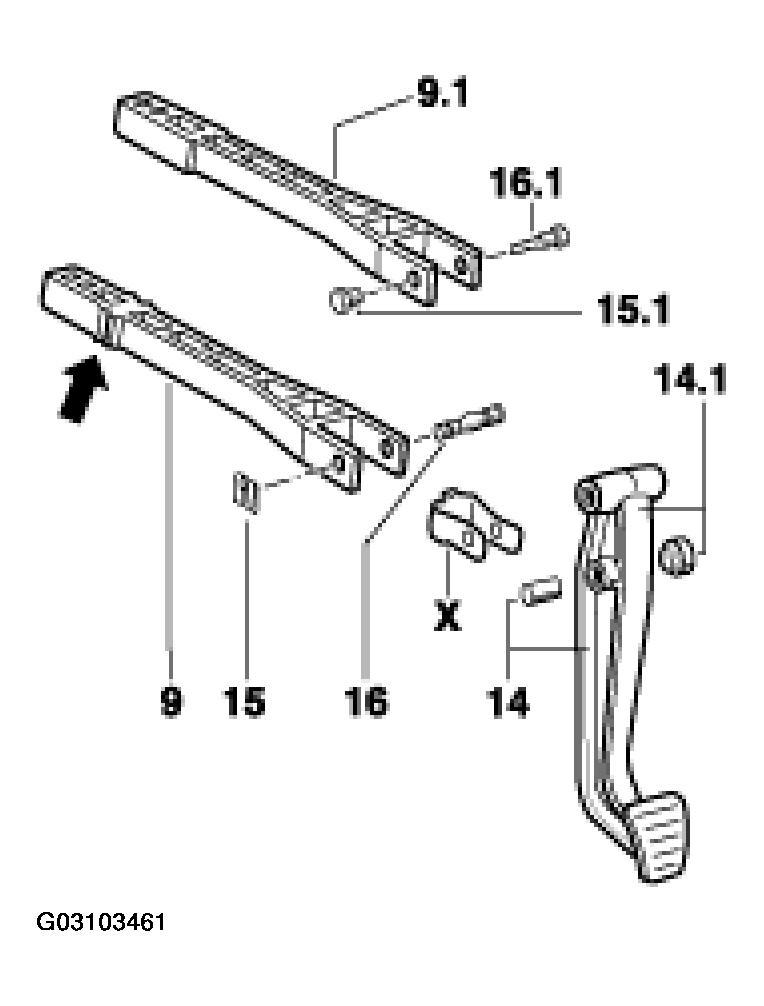

Fig 1: Identifying Brake Pushrod, Brake Pedal And Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Installation of the new brake pedal -14.1- is necessary as the connection to the push rod in model '97 -9- is made with a pin (self-aligning bolt) -16- with a mechanical locking device -15- . Connection as of '98 model: Threaded bolt -16.1- with threaded bushing -15.1- . See Fig 1 .
The new brake pedal -14.1- is fitted with a bearing (pressed in) (at the connection to the push rod) while the brake pedal of model '97 -14- (in this area) is fitted with a bushing. See Fig 1 .
The clip -X- on the push rod of model '97 -9- is not included. See Fig 1 .

Remove the brake pedal and install new brake pedal. Refer to REMOVING AND INSTALLING BRAKE PEDAL . Remove and install brake pedal.
