Front axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Measure from road contact surface to the lower edge of the hexagon-head bolt of the tension-strut screw connection to the body.

Nominal values for front and rear axles are given in VEHICLE HEIGHT SPECIFICATIONS - BOXSTER AND BOXSTER S  .

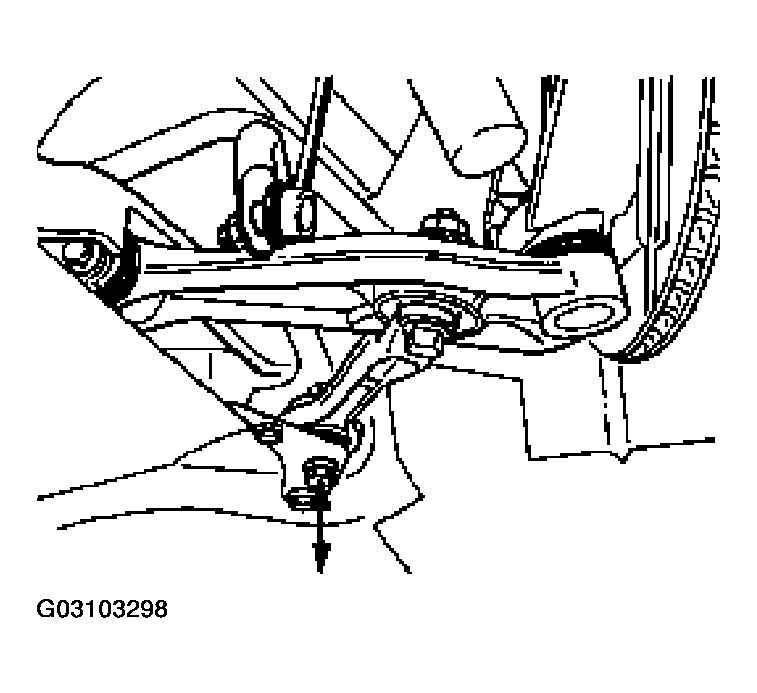

Fig 1: Measuring Vehicle Height From Road Contact Surface To Lower Edge Of Hexagon-Head Bolt - Front Axle
G03103298Courtesy of PORSCHE OF NORTH AMERICA, INC.
