Adjustment values for suspension alignment: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The following values relate to the empty weight. This means: full fuel tank, vehicle with spare wheel and tools, but without driver and without additional weights.

The vehicle height depends on the wheel size (16,17 or 18-inch).

Vehicle height - Boxster and Boxster S

VEHICLE HEIGHT SPECIFICATIONS - BOXSTER AND BOXSTER S

	Wheel size	USA: Series and Sport	RoW: Series	RoW: Sport
Front-axle height
From road contact surface to lower edge of hexagon-head bolt (a/f 18) of the tension-strut screw connection to the body. See Figure .	16-inch	149 +/- 10 mm	139 +/- 10 mm	129 +/- 10 mm
	17-inch	154 +/- 10 mm	144 +/- 10 mm	134 +/- 10 mm
	18-inch	155 +/- 10 mm	145 +/- 10 mm	135 +/- 10 mm
Rear-axle height

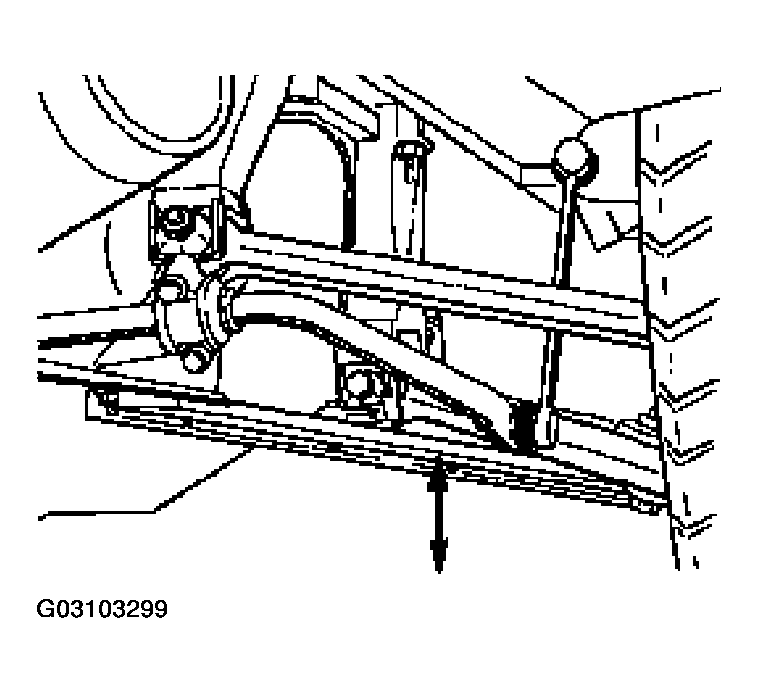

From road contact surface to lowest surface of the diagonal brace at the control-arm securing point. See Figure .	16-inch	144 +/- 10 mm	144 +/- 10 mm	134 +/- 10 mm
	17-inch	148 +/- 10 mm	148 +/- 10 mm	138 +/- 10 mm
	18-inch	151 +/- 10 mm	151 +/- 10 mm	141 +/- 10 mm
