Removing and installing sheetmetal brace: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle at the prescribed support points.
Front

Fig 1: Locating Vehicle Raising Support Points (Front)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Rear

Fig 2: Locating Vehicle Raising Support Points (Rear)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the right and left diagonal braces and the sheetmetal brace. Pull the sheetmetal brace without exerting excessive force.

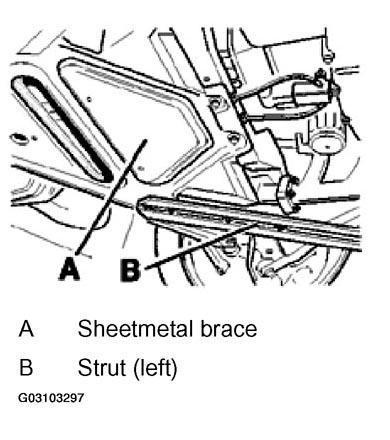

Fig 3: Removing Right And Left Diagonal Braces And Sheetmetal Brace

Courtesy of PORSCHE OF NORTH AMERICA, INC.
