Removing and installing rear tie rod (toe control arm): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in reverse order. Before installing, give all parts a visual check.
    NOTE:
    • When replacing tie rods, pay close attention to the correct allocation. Install only identical tie rods - version A or B - on a vehicle. For a detailed explanation - distinguishing characteristics and Spare Part No. - refer to TIE ROD REPLACEMENT  (after installation).

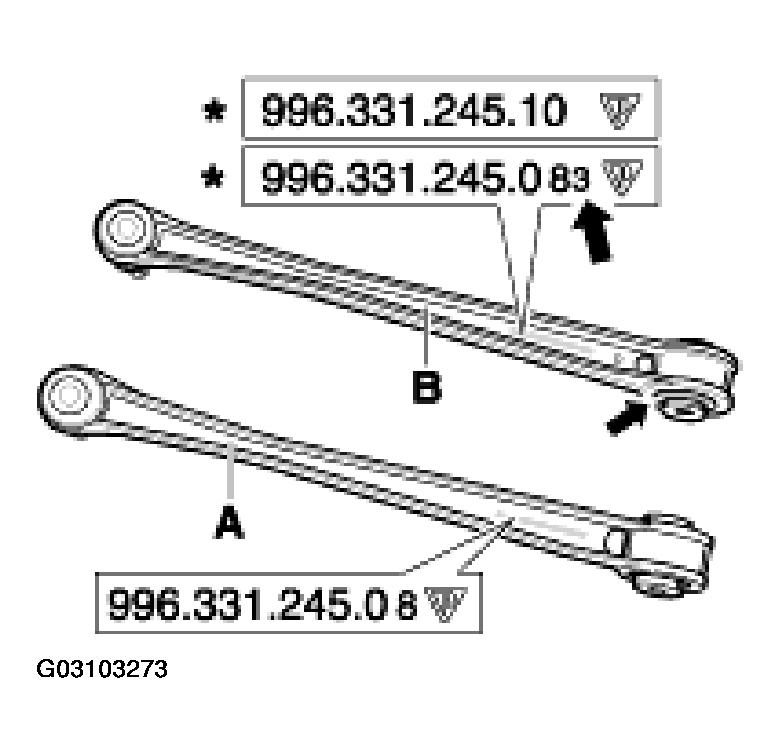

    Fig 1: Identifying Tie Rods (1 Of 2)
    G03103273Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Replace fastening nuts. Use correct tightening torques.
  3. Perform a suspension alignment after installation.
