Removing and installing rear stabilizer: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the vehicle.
  2. Remove rear underside panel (5).
    Fig 1: Removing Rear Underside Panel
    G03103285Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disassemble the right and left strut and the sheetmetal brace.

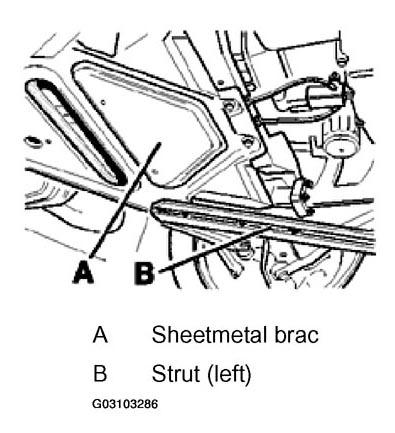

    Fig 2: Locating Right And Left Strut And Sheetmetal Brace
    G03103286Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Undo stabilizer on the stabilizer mount. Counter at the ball heads using an open-ended wrench.
  5. Undo the stabilizer on the rear axle side sections and remove stabilizer.
