Removing and installing rear axle strut (control arm): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the vehicle. Remove the rear wheel.
  2. Undo the control arm of the axle strut.

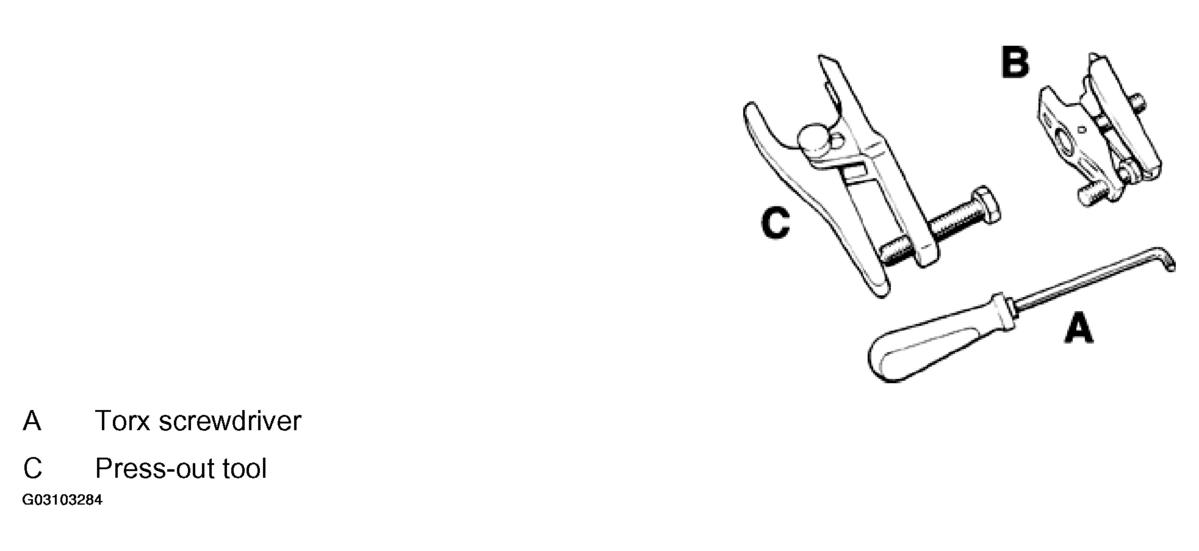

  3. Remove axle strut on wheel carrier on the rear axle side sections. Counter with Torx screwdriver (A), special tool 9546, when undoing the fastening nuts on the wheel carrier. See Fig 1 .
    4. Fig 1: Identifying Rear Axle Strut Removing And Installing Tools
    G03103284Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Press the ball joint off the wheel carrier using press-out tool (C), special tool 9560.
    NOTE:
    • If necessary, use a driving impact to help pull off the ball head (taps of a hammer on a copper mandrel near the ball journal). The puller should press on the fastening nut, which is still fitted but loosened (protection for thread and Torx).
  5. Pull the ball journal of the axle strut downwards and out of the wheel carrier (pull axle strut downwards while making sure not to tilt it).
NOTE:
  • The sensor is seated on the axle strut for vehicles with headlight beam adjustment. Disengage the strut of the sensor on the axle strut. It is not necessary to calibrate the headlight beam adjustment after these assembly procedures.
