Removing and installing drive shaft: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

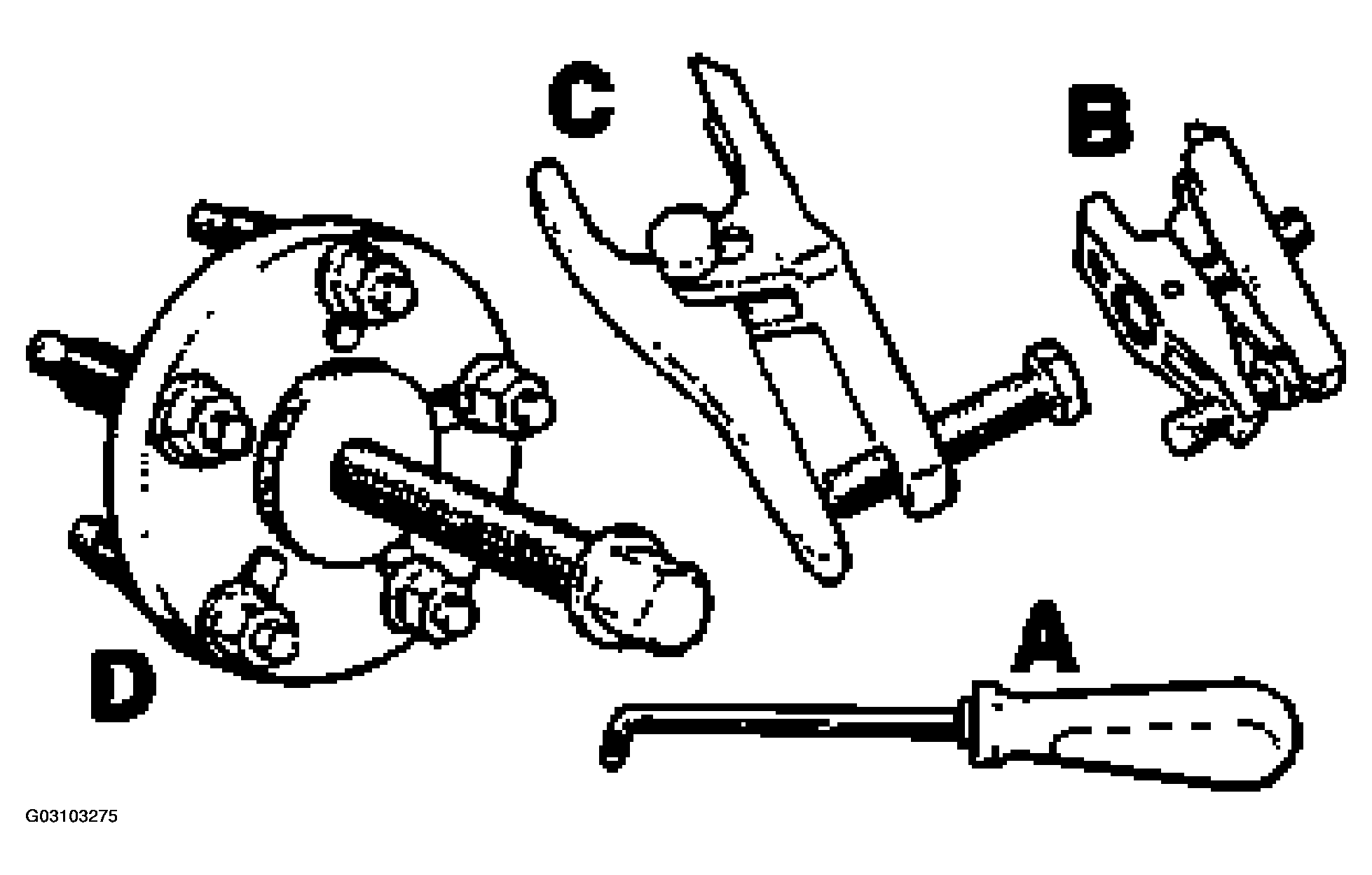

Fig 1: Identifying Drive Shaft Removing And Installing Tools
G03103275Courtesy of PORSCHE OF NORTH AMERICA, INC.
DRIVE SHAFT REMOVING AND INSTALLING TOOL EXPLANATION

Item Designation Special tool Explanation
A Torx screwdriver 9546 To counter the ball joint when assembling and disassembling the fastening nuts.
B Ball joint extractor (track rod extractor) Commercially available; refer to Workshop Equipment Manual, Chapter 2.4, No. 113.
C Press-out tool (ball joint extractor) 9560 To press off the ball joint on the wheel carrier.
D Universal wheel hub extractor Commercially available To press the drive shaft out of the wheel hub.
