Removing and installing left drive shaft: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order. Grease the toothing of the drive shaft with Optimoly HT.
Carry out a visual inspection of all parts. Replace self-locking nuts. Use correct tightening torques.
After assembly (for vehicles with manual transmission), check that the clutch slave cylinder lead is in its correct position and check for leaks.

NOTE:

Only optimised axle nuts - version B - for drive shaft fastening are available from the Parts Service. These two-part fastening nuts (M22) have a moveable washer (arrows). Retrofitting is possible for all Boxster and all 911 Carrera (996) vehicles.

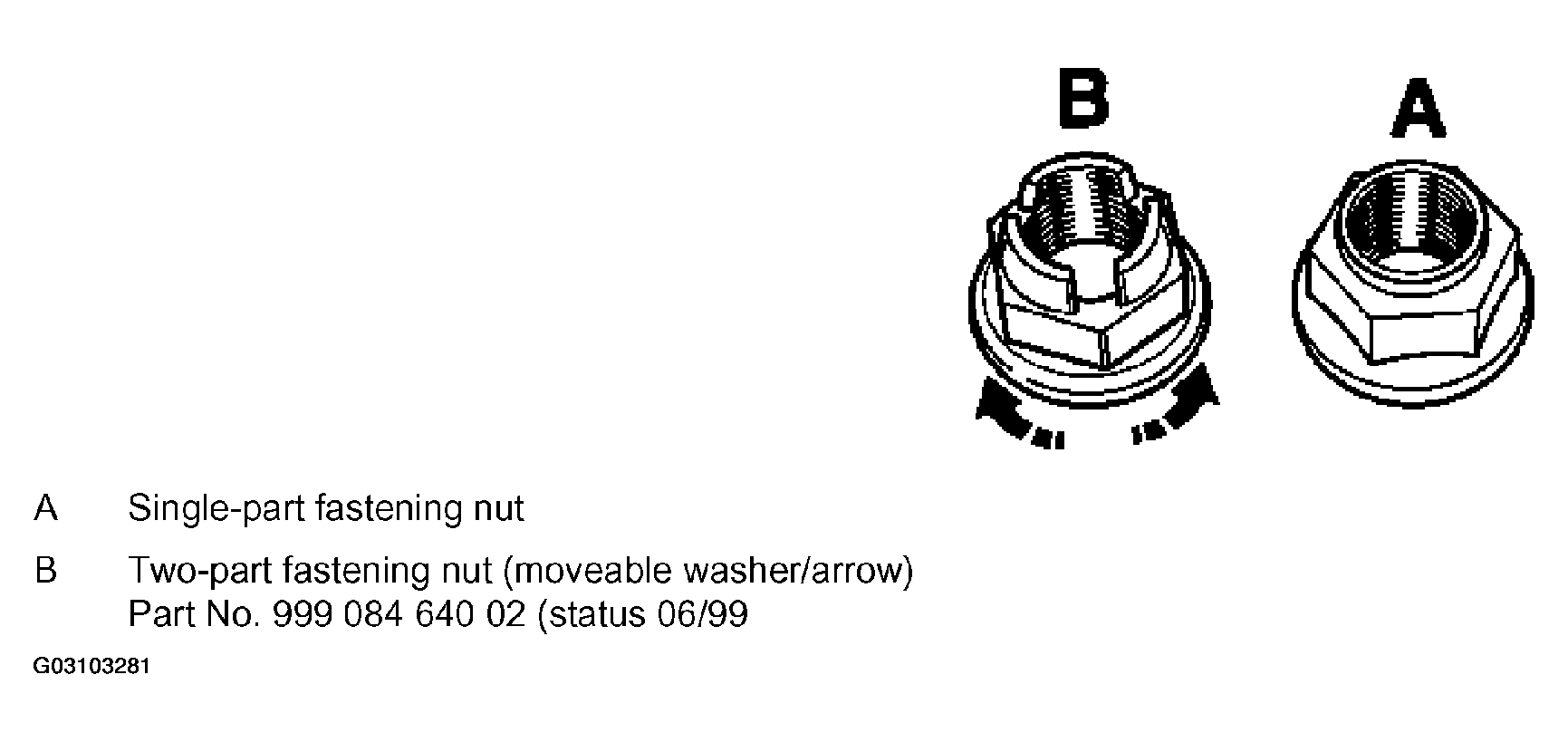

Fig 1: Identifying Two-Part Fastening Nuts

Courtesy of PORSCHE OF NORTH AMERICA, INC.
