Manual transmission vehicles: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the vehicle.
  2. Remove cable fastening on engine (1).
  3. Remove cable (C) on the rear axle cross member with a commercially available 1/2 inch changeover ratchet (B) with the corresponding extension and 13 mm socket wrench insert. When doing this, hold onto each hexagon of the cable (2). The tool (B) is inserted through the slot in the sheetmetal brace.

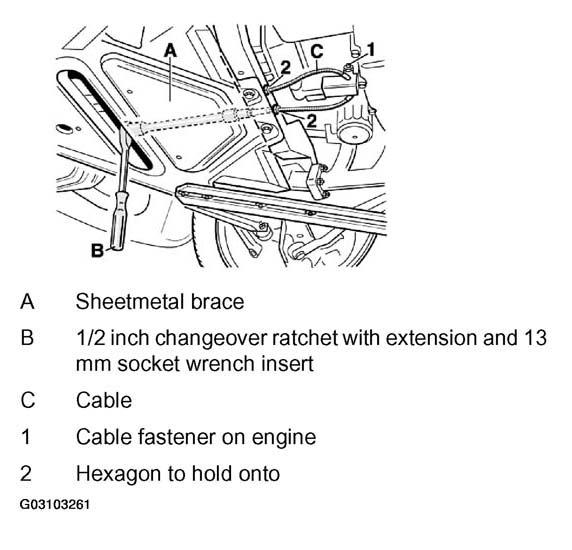

Fig 1: Removing Cable (Manual Transmission Vehicles)
G03103261Courtesy of PORSCHE OF NORTH AMERICA, INC.
