Fitting the drive shaft to the transmission: combinations permitted for the Boxster: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The following changes apply only to the Boxster (and not the Boxster S).

As of model '03 (3 range), light-weight monobloc drive shafts -B- in Fig 1 are being used instead of friction-welded drive shafts. -A- in Fig 1 in Boxsters with manual and Tiptronic transmissions. Drive shafts -A and B- in Fig 1 differ with regard to dimensions -1, 2 and 3- in Fig 1 . The appropriate assigned fastening screws and plates must be used (see the following table).

Friction-welded drive shafts -A- in Fig 1 are available and are to be installed for repairs in models up to '02.

In the case of the Boxster S (manual and Tiptronic transmission) the friction-welded drive shafts (using an M10 fastening screw) are installed as before.

Manual transmissions and Tiptronic drive shafts also differ with regard to length in both the monobloc version -A- in Fig 1 and the friction-welded version -B- in Fig 1 (see the spare parts catalogue). To distinguish between the two, new drive shafts are labelled accordingly.

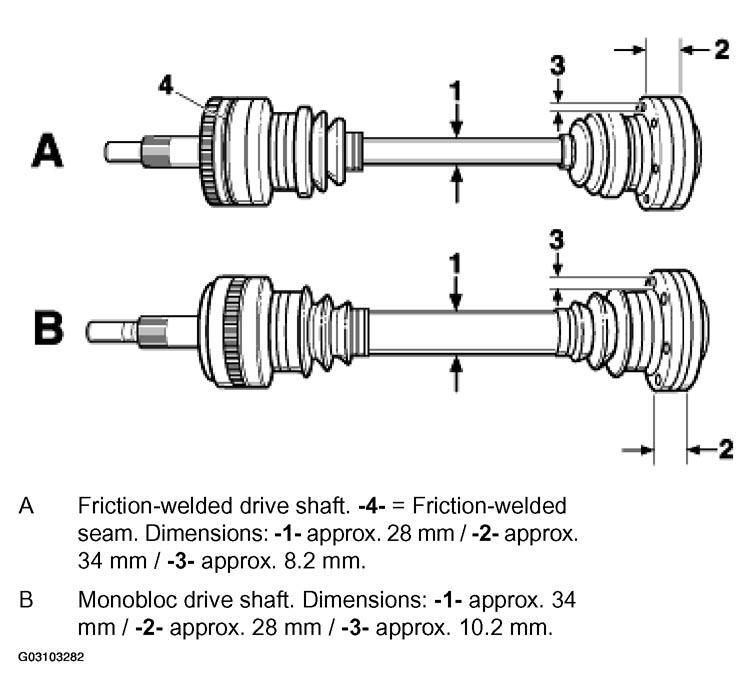

Fig 1: Identifying Manual TransmissionAnd Tiptronic Drive Shafts

Courtesy of PORSCHE OF NORTH AMERICA, INC.
