Drive shaft fastening: combinations permitted for the Boxster
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Monobloc drive shafts -B- have bores for M10 fastening screws (diameter approx. 10.2 mm) on the inner joint.
- As the transmission flange in Tiptronic vehicles is also equipped with M8 thread (also in conjunction with monobloc drive shafts), special screws -2- with M8 thread and a shank diameter of 10 mm -arrows-are used to compensate for the larger bores of 10.2 mm on the joint.
- The special screws -2- are also used in manual transmission vehicles produced as of model '03, since the transmission flange with M10 thread is only available from November 2002.
There are 3 versions of the transmission flange for the Boxster (not for the Boxster S): 1 flange for Tiptronic transmission with M8 thread (irrespective of model year and drive shafts) and 2 flanges for manual transmission (1 with M8 thread and 1 with M10 thread).

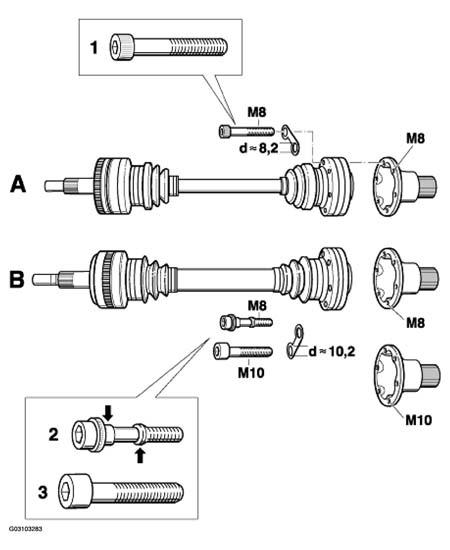

In accordance with the drive shaft version -A or B- in Fig 1 and depending on the transmission flange, the stipulated screws -1, 2 or 3- in Fig 1 and plates -d = 8.2 mm or d = 10.2 mm- must be used.
DRIVE SHAFT SCREWS & PLATES
| Version - (drive shaft/transmission flange) | Stipulated screws and plates | Use |
|---|---|---|
| Friction-welded drive shafts -A--M 8- in Fig 1 | Pan-head screw -1-d- in Fig 1 |
|
| Monobloc drive shafts -B-M 8- in Fig 1 | Special screw -2-arrows-d- in Fig 1 |
|
| Monobloc drive shafts -B-M 10- in Fig 1 | Pan-head screw -3-d- in Fig 1 |
|
