Disassembling and assembling rear spring strut: Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REAR SPRING STRUT DISASSEMBLING AND ASSEMBLING TOOL EXPLANATION

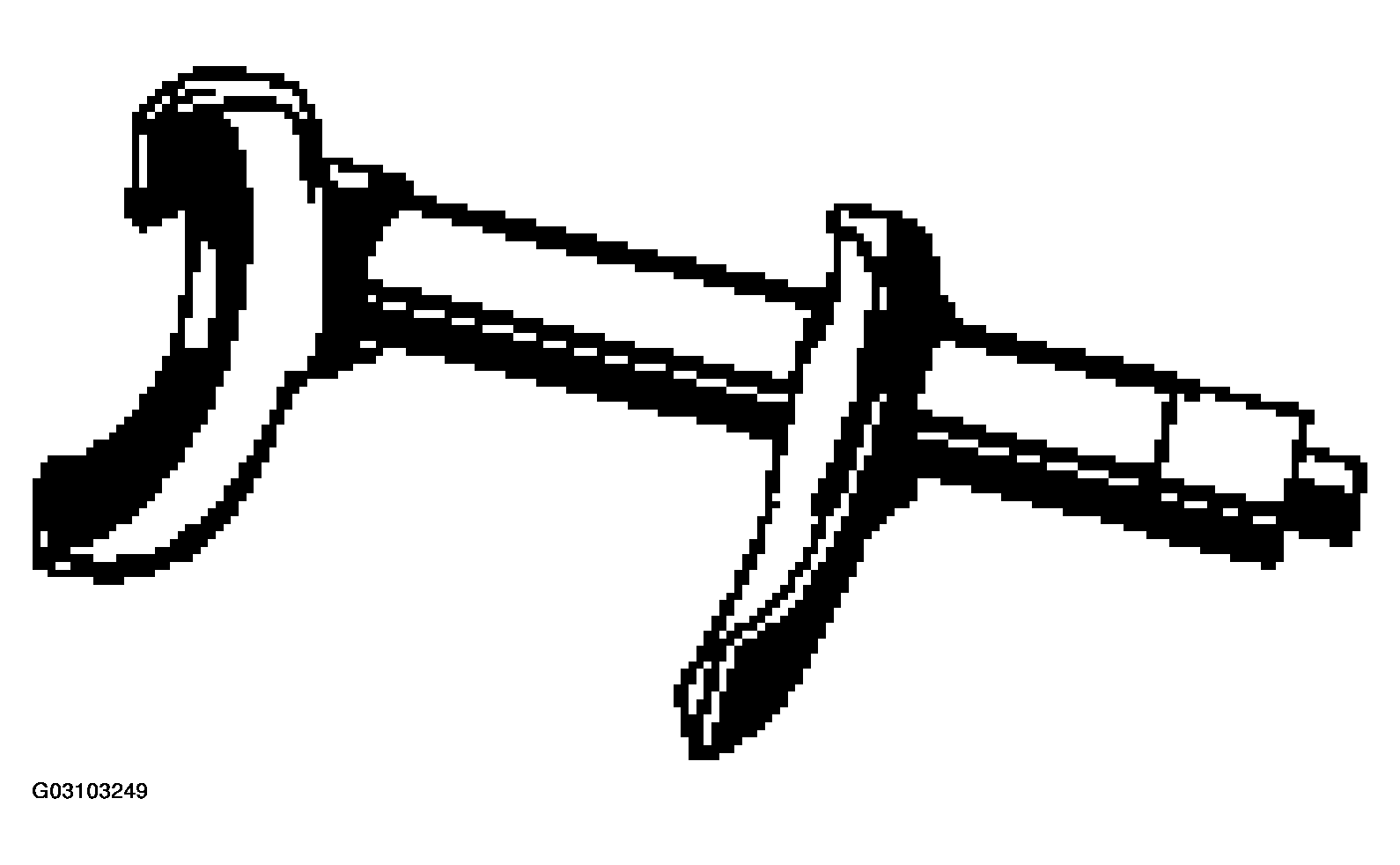

| No. | Designation | Special tool | Explanation |
|---|---|---|---|
| Spring clamp, e.g. from Klann, with spring holder-- | commercially available Clamping range of spring holder up to 165 mm spring diameter |
REAR SPRING STRUT REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening nut M 14 x 1.5 | 1 | Before loosening the fastening nut, tension coil spring with the spring clamp. Support at the piston rod when loosening the nut. | Use new fastening nut. Tighten to 60 Nm (44 ftlb.). First position the spring strut mount (No. 3). |
| 2 | Stop plate | 1 | Mount in correct position (No. 2 and No. 7 are identical parts) | |
| 3 | Spring strut mount | 1 | Remove mount with sealing ring No. 4 | The mounts for the right and left sides are identical parts. Position the mount before tightening fastening nut No. 1. |
| 4 | Sealing ring | 1 | Replace | |
| 5 | Back-up ring | 1 | Mount in correct position | |
| 6 | Spring plate (compensation part) | 1 | Observe allocation. Join in correct position with back-up ring No. 5. | |
| 7 | Stop plate | 1 | Mount in correct position (No. 2 and No. 7 are identical parts) | |
| 8 | Additional spring | 1 | Mount on protective bellows (No. 9) | |
| 9 | Protective bellows | 1 | ||
| 10 | Coil spring | 1 | Observe allocation as per Spare Parts Catalogue. | |
| 11 | Vibration clamper | 1 | Observe allocation as per Spare Parts Catalogue. The vibration clampers for the right and left sides are identical parts. |
