Preliminary work and notes on assembly
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- Replace nut for fastening the piston rod on the spring strut mount.
- It is recommended to replace the coil springs only in pairs.
NOTE:
- If the coil springs are exchanged, it might be necessary to use a different spring plate than before.
The following spring plates (compensation parts) are available:

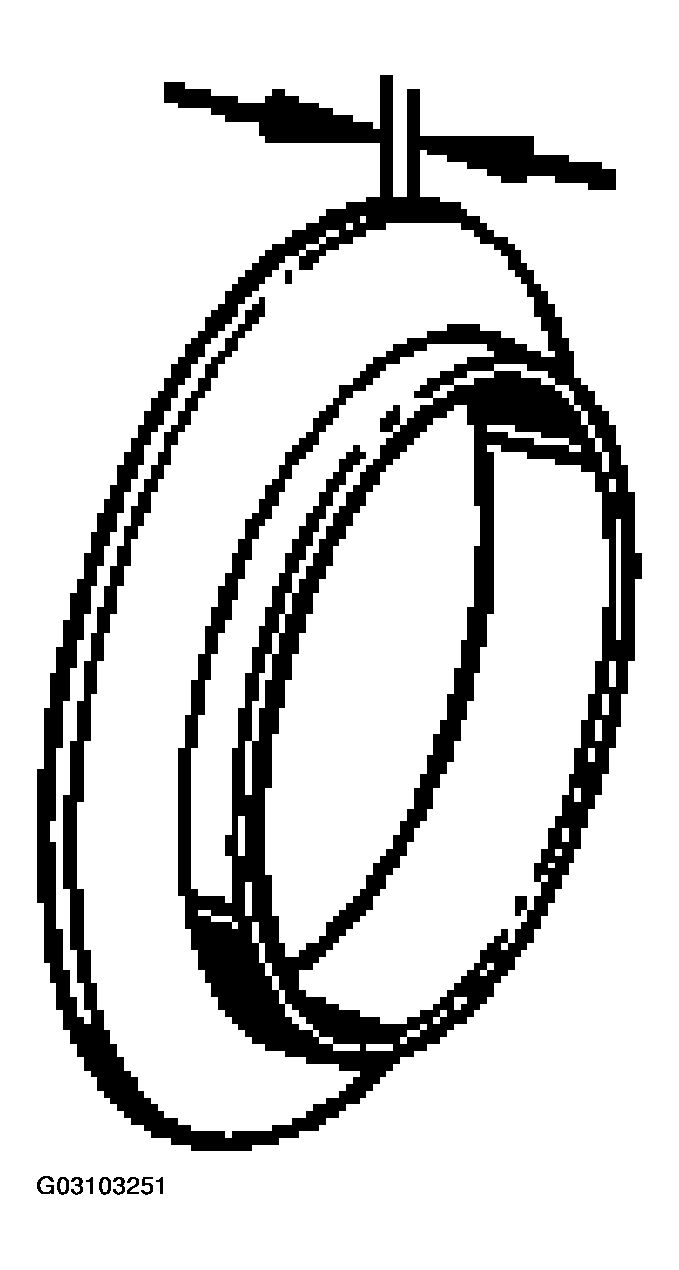

Allocation of the spring plate according to the coil spring tolerance group. See Fig 1 .
1 green line = 6.5 mm thick compensation part
1 white line = 3.0 mm thick compensation part
- Press spring plate (compensation part) into the ring.
- Fit protective bellows on additional spring.
- Observe the correct allocation (running gear version) when installing new springs and/or dampers.
