Disassembly and assembly instructions: Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Tension the coil spring with the spring clamp until the piston rod is relieved.

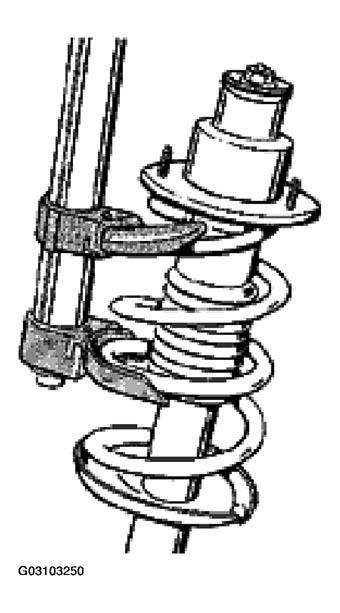

Fig 1: Tensioning Coil Spring With Spring Clamp
Courtesy of PORSCHE OF NORTH AMERICA, INC.
To undo the connection - piston rod to spring strut mount - counter at the piston rod with 7-mm hexagon socket key. Important: Never use an impact bolter to loosen or tighten the fastening nut.
Remove all parts from the piston rod.

NOTE:

When installing new parts, observe the allocation according to the Spare Parts Catalogue.
