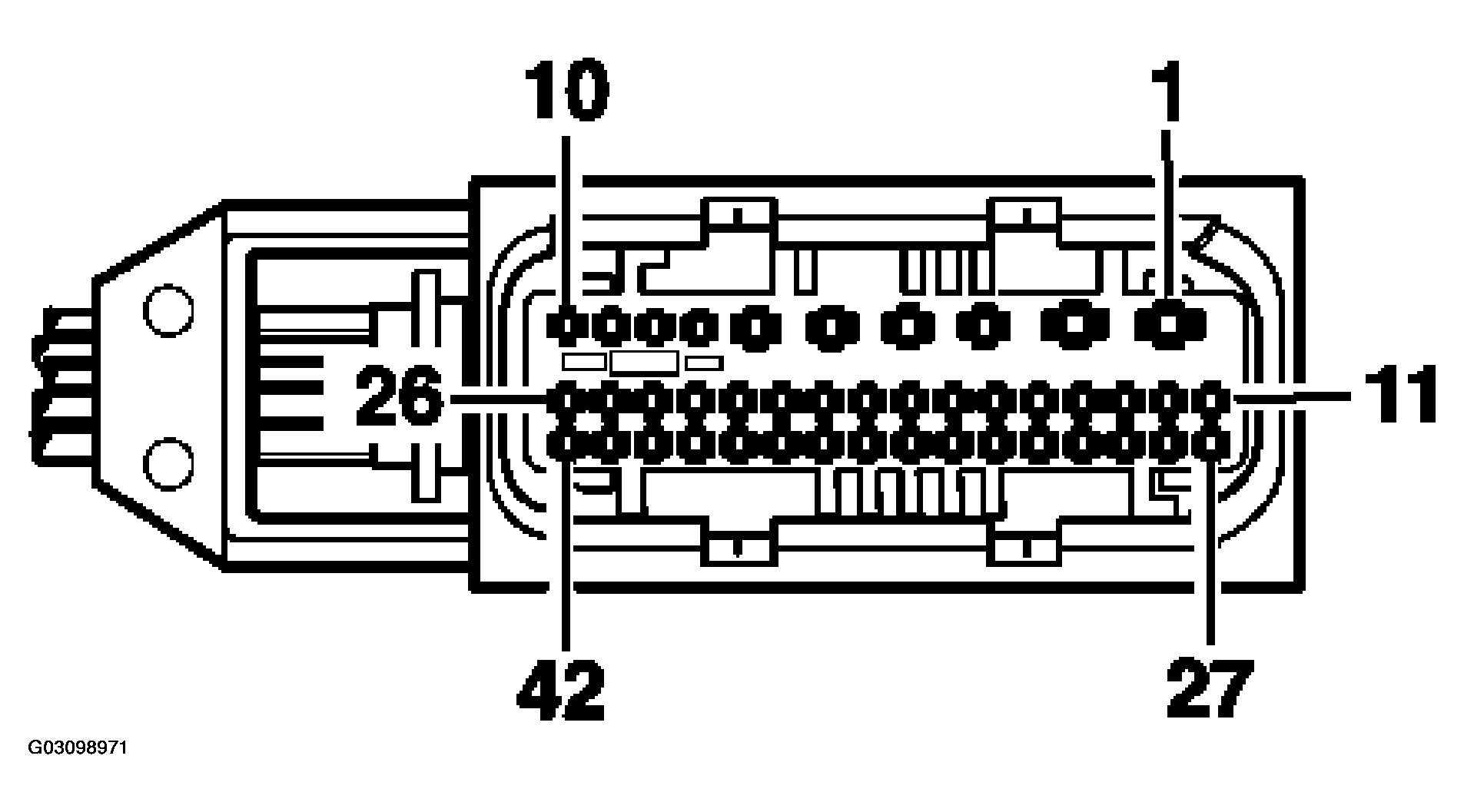

ABS control unit wiring harness plug
ABS CONTROL UNIT WIRING HARNESS CONNECTOR PIN DESIGNATION - AS OF MY 2002
| Pin | Designation | Pin | Designation |
|---|---|---|---|
| 1 | Ground, return pump | 2 | Voltage for return pump relay |
| 3 | Not used | 4 | Not used |
| 5 | Ground, PSM control module | 6 | Voltage - terminal 30 valve relay |
| 7 | Not used | 8 | Not used |
| 9 | Not used | 10 | Not used |
| 11 | Diagnosis communication wire | 12 | Front left speed sensor (signal wire) |
| 13 | Rear left speed sensor (supply line) | 14 | Not used |
| 15 | Front right speed sensor (supply line) | 16 | Front right speed sensor (signal wire) |
| 17 | Not used | 18 | Not used |
| 19 | Rear right speed sensor output (signal wire) | 20 | Not used |
| 21 | Not used | 22 | Not used |
| 23 | Power supply terminal 15 | 24 | CAN bus (high) |
| 25 | Not used | 26 | Not used |
| 27 | Not used | 28 | Front left speed sensor (supply line) |
| 29 | Rear left speed sensor (signal wire) | 30 | Rear right speed sensor (supply line) |
| 31 | Rear right speed sensor (signal wire) | 32 | Stop light switch (close) |
| 33 | Not used | 34 | Rear left speed sensor output (signal wire) |
| 35 | Not used | 36 | Stop light switch (open) |
| 37 | Not used | 38 | Parking brake switch |
| 39 | Not used | 40 | CAN bus (low) |
| 41 | Not used | 42 | Not used |
