Possible causes, elimination, notes
- Check with the System Tester 2 via the "Input signals"
menu. Press the brake pedal after selection of the stop-light switch. Required display: Display on screen changes from "not actuated" to "actuated".

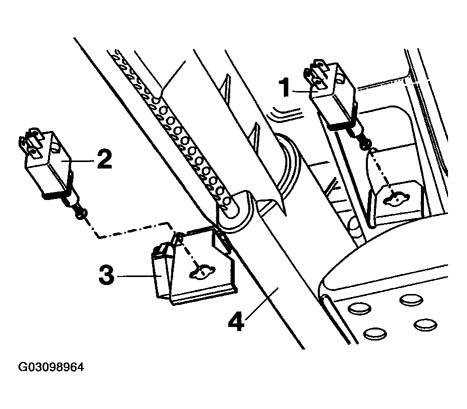

- Pull off wires on the stop light switch (No. 1). Test the stop-light switch with a multimeter (remove switch for the test if necessary).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Check stop-light switch adjustment (operating point) (see CHECKING BRAKE LIGHT SWITCH SETTING
).
- Check wiring according to the wiring diagram.
