Connector assignment, control module (ABS and ABS/TC)

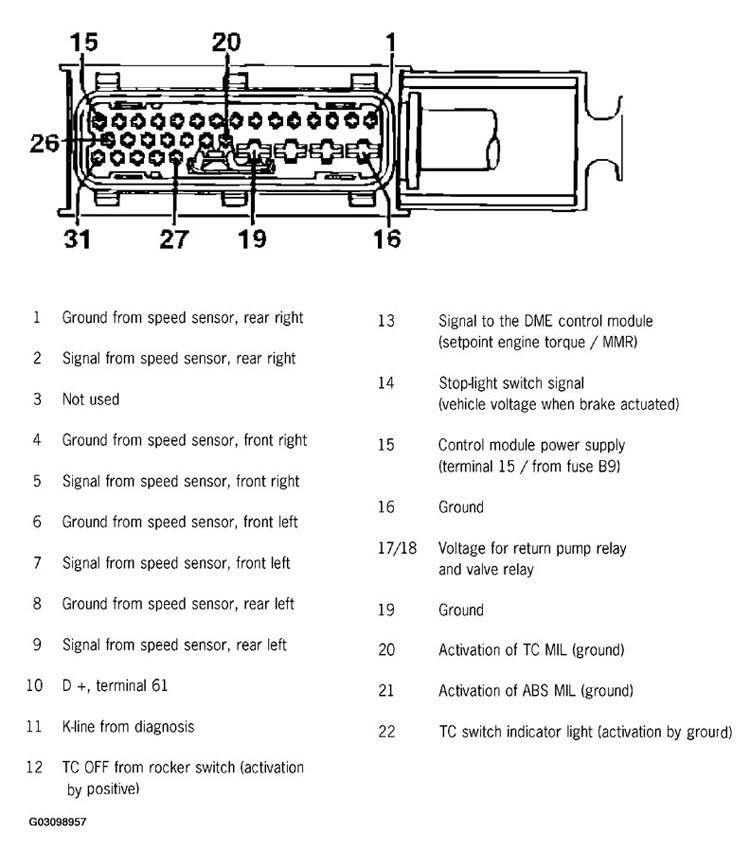

Fig 1: Identifying Connector Pin Assignment, Control Module (ABS And ABS/TC) (1 Of 2)
G03098957Courtesy of PORSCHE OF NORTH AMERICA, INC.

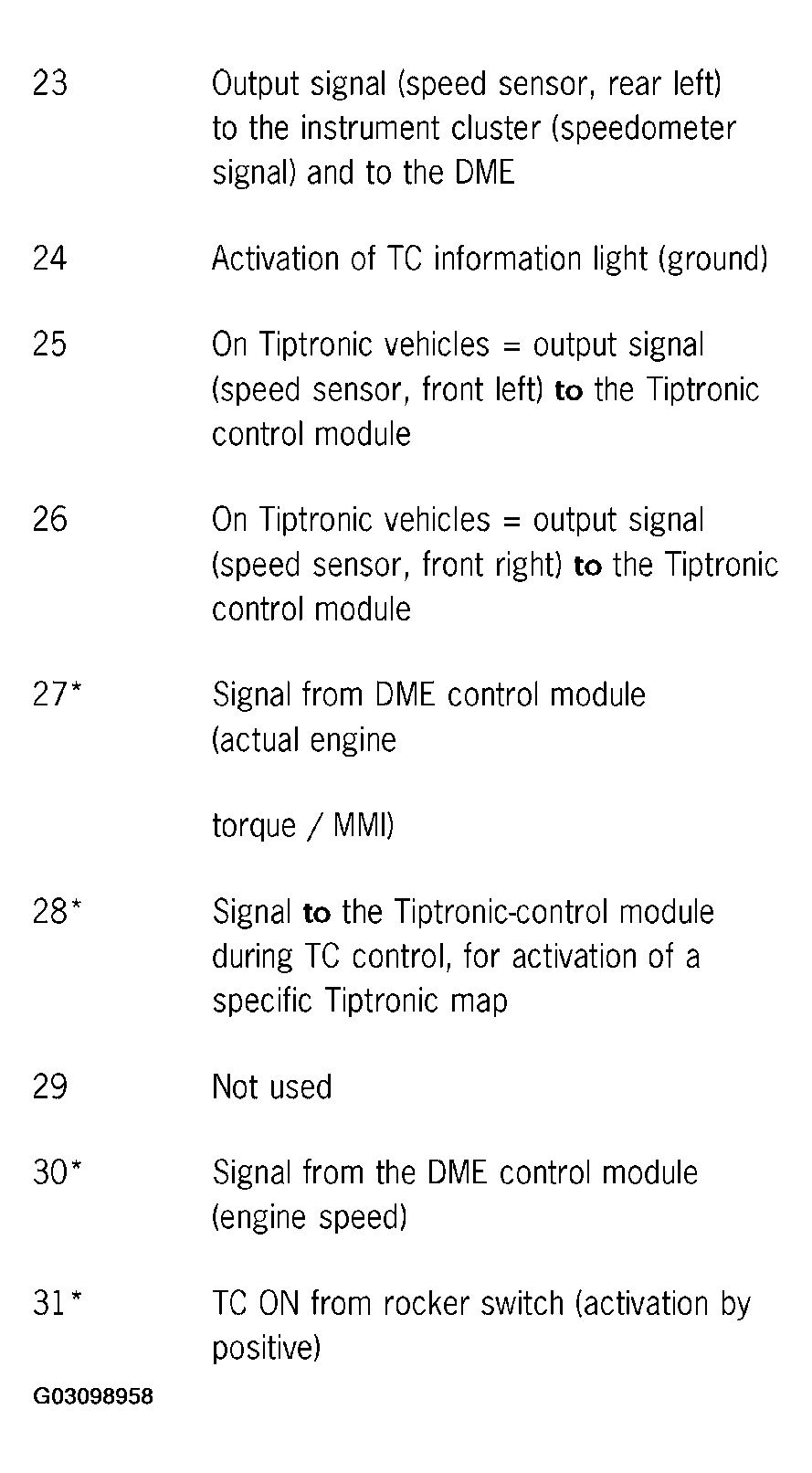

Fig 2: Identifying Connector Pin Assignment, Control Module (ABS And ABS/TC) (2 Of 2)
G03098958Courtesy of PORSCHE OF NORTH AMERICA, INC.
