Connecting Porsche System Tester 2

The diagnostic socket (arrow) to which the Porsche System Tester 2 is connected is located in the driver's footwell (left-hand drive vehicles) or passenger's footwell (right-hand drive vehicles) near the fuse box.

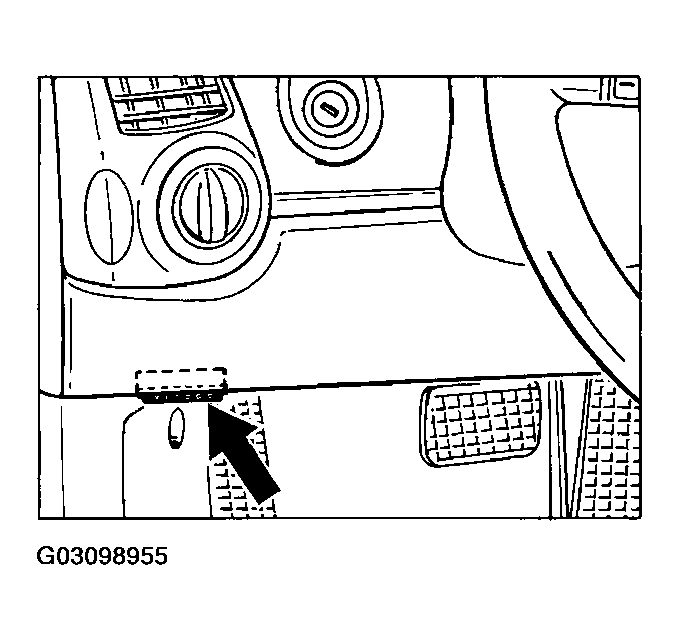

Fig 1: Locating Diagnostic Socket
G03098955Courtesy of PORSCHE OF NORTH AMERICA, INC.
