Removing mounting unit (drive mechanism)

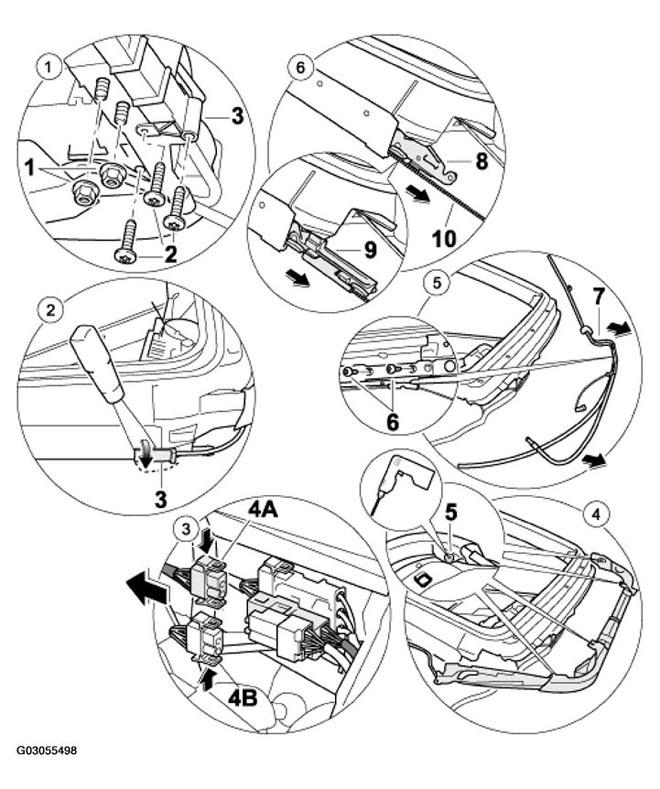

Fig 1: Removing Mounting Unit (Drive Mechanism) Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

MOUNTING UNIT (DRIVE MECHANISM) COMPONENTS REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
	Removing roof module	See Removing roof module .
	Building up roof module on device	See Tools and materials .
	Removing cover for sliding roof	See Removing and installing cover for sliding roof - Targa .
	Removing frame for sliding roof cover	See Removing and installing frame for sliding roof cover - Targa .
	Removing fabric lining	See Removing and installing fabric lining - Targa .
1	Removing rear water drainage bracket	Unscrew the fastening screw -2-1-3- . See Fig 1.
2	Undoing the bracket on the rear water drainage all the way round with a metal spatula	Undo the bracket on the rear water drainage -3- . See Fig 1.
3	Disconnecting the electrical plug connection of the sun blind motor drive	Disconnect electrical plug connection (blue) -4A-4B- . See Fig 1.
4	Drilling the pop rivets out	Drill out the pop rivets -5- . See Fig 1.
Note! During removal, the metal guide tubes must not be bent or distorted!
5	Removing the metal guide tubes	Unscrew fastening screws -6-7-7- . See Fig 1.
6	Pulling out the mounting unit	Pull out the mount slide at the front -8-9-10- . See Fig 1.
