Removing the rear fabric lining
NOTE:
- The electrical lead for the sun blind drive is pulled into the rear right fabric lining. In order to replace the fabric lining, the electrical plug connection on the drive motor must be disconnected. See Removing and installing electric motor for sliding roof sun blind - Targa .
REAR FABRIC LINING COMPONENTS REMOVING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|
| Removing the front fabric lining | See Removing the front fabric lining . | |

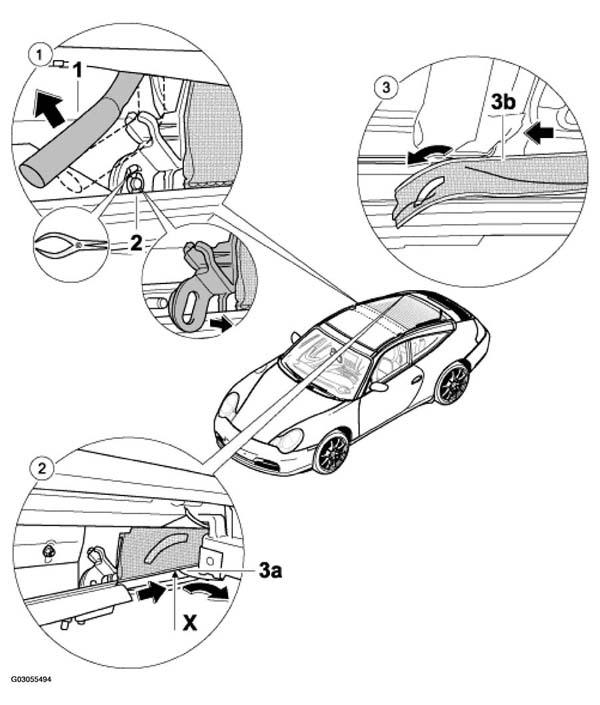

| 1 | Removing retainer | 1. Pull the rubber hose -1- out of the holder. See Fig 1. |
| 2. Pull the retainer -2- off with pointed-nose pliers. See Fig 1. | ||
| 3. Disengage the rear fabric lining -3- from the drive. See Fig 1. | ||
| 2 | Removing lower connection | Pull the fabric lining -3a-direction of arrow- . See Fig 1. |
| 3 | Removing top connection | Pull the fabric lining -3b-direction of arrow- . See Fig 1. |
