Removing frame for sliding roof cover

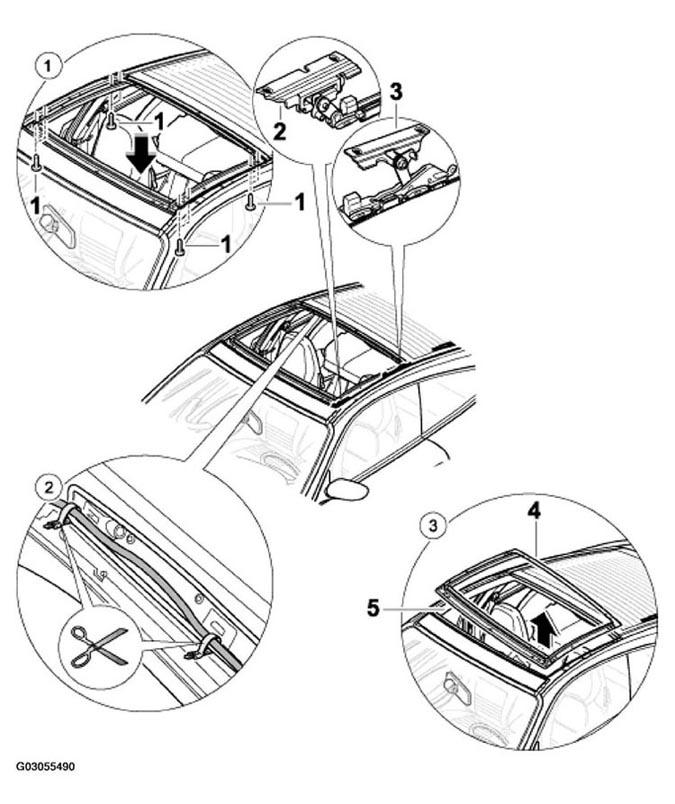

Fig 1: Removing Frame For Sliding Roof Cover - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SLIDING ROOF COVER FRAME REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
	Removing the front fabric lining	See Removing the front fabric lining .
	Removing cover for sliding roof	See Removing and installing cover for sliding roof - Targa .
	Requirement for removing the frame for the sliding roof cover	To remove the frame of the cover for the sliding roof, the mounts must be moved into horizontal position. - By actuating the rocker switch. or - See Sliding roof emergency operation mechanism .
1	Unscrewing fastening screws	Unscrew the fastening screws -1-2 and 3- . See Fig 1.
2	Cutting tie-wrap	Cut through the tie-wrap -arrow- . See Fig 1.
3	Removing the frame for the sliding roof cover from the roof module frame	Raise the frame for the sliding roof cover -4-5- . See Fig 1.
