Removing the front fabric lining

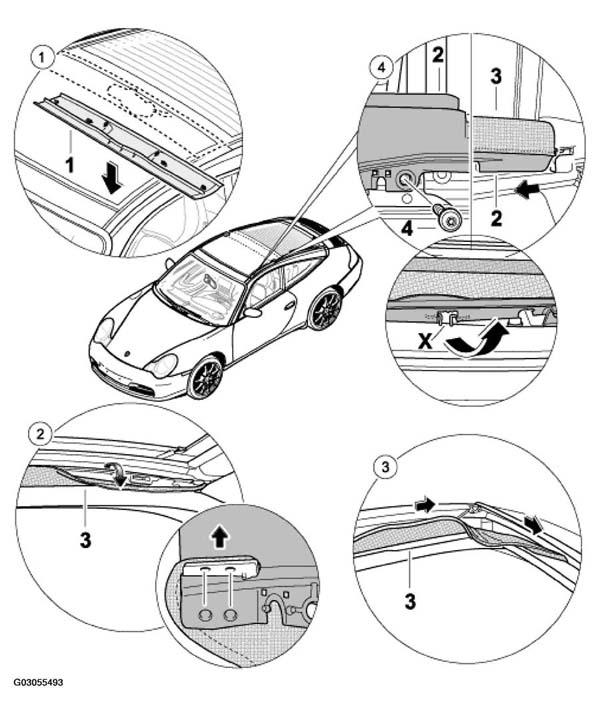

Fig 1: Removing Front Fabric Lining Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT FABRIC LINING COMPONENTS REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Removing the cover	Pull cover -1-direction of arrow- . See Fig 1.
2	Removing top connection	Pull the connection seal, top -3-2-2-X- . See Fig 1.
3	Removing lower connection	1. Open sliding roof cover.
		2. Pull the fabric lining -3- in -direction of the arrow- out of the roof profile. See Fig 1.
4	Removing the plastic cover	1. Unscrew fastening screw -4- from the plastic cover -2- . See Fig 1.
		2. Move plastic cover out of the metal clip -X- in -direction of arrow- . See Fig 1.
		3. Guide the plastic cover out of the roof frame at the front -direction of arrow- and out of the roof module. See Fig 1.
