Installing the front fabric lining

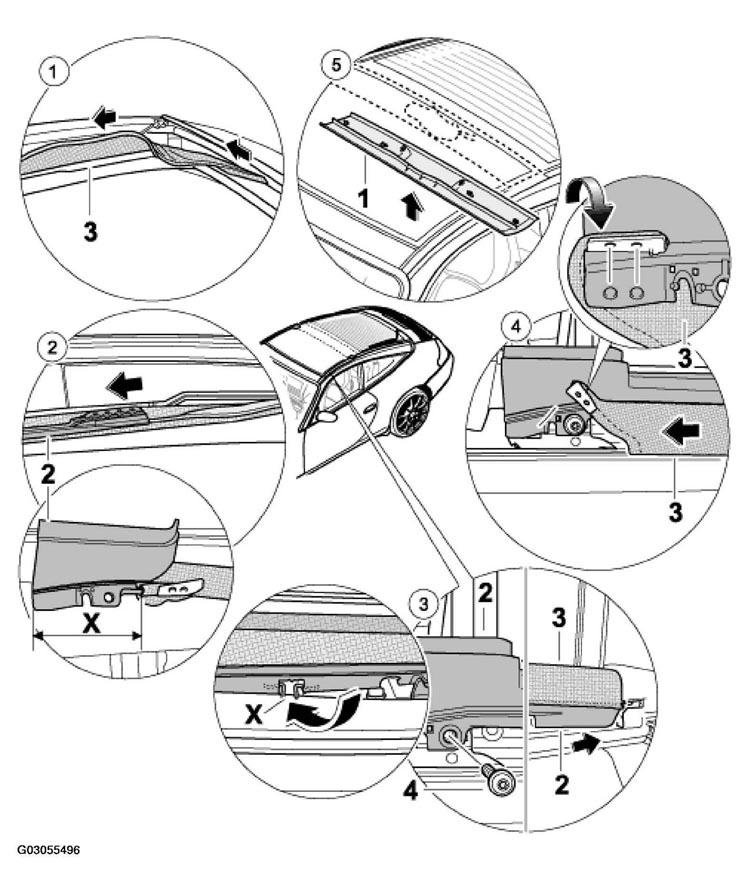

Fig 1: Installing Front Fabric Lining Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT FABRIC LINING COMPONENTS INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Pulling the lower connection	Pull the connection seal of the fabric lining -3- . See Fig 1.
2	Pulling in the top connection	Pull the connection seal into the plastic cover -2-direction of the arrow-dimension X = 6mm- . See Fig 1.
3	Installing the plastic cover	1. Insert the plastic cover -2- at the front into the roof module. See Fig 1.
		2. Insert plastic cover under the metal clip -X- . See Fig 1.
		3. Screw the fastening screw -4- into the plastic cover at the rear. See Fig 1.
4	Fitting the connection	Pull fabric lining to the rear until the plastic cover is covered. Lay the bead around the plastic cover -2-2- . See Fig 1.
5	Installing cover	Push cover -1- . See Fig 1.
