Replacing the seal for the sliding roof cover

In order to replace the seal for the sliding roof, the sliding roof cover must be removed.

1. Removing seal

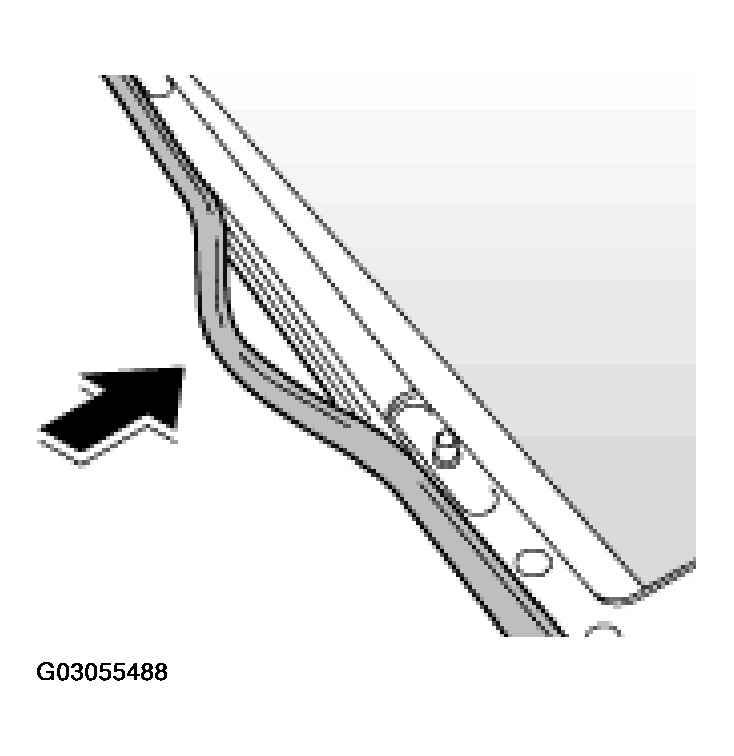

   Fig 1: Removing Seal - Targa

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

See Removing cover for sliding roof .

Pull off the seal all the way round the sliding roof cover.

1. Installing seal

   Position the seal all the way round the sliding roof cover.

   See Installing cover for sliding roof .

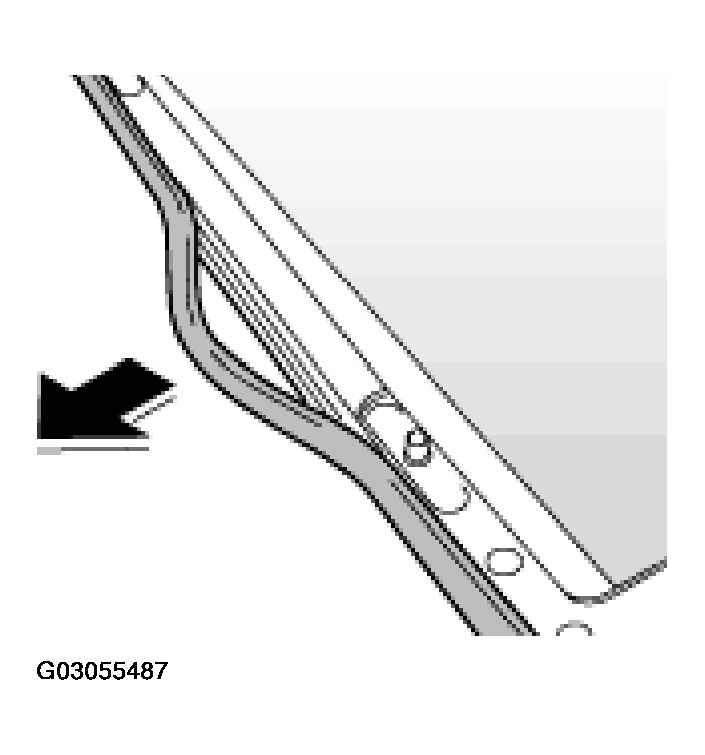

   Fig 2: Installing Seal - Targa

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
