Removing cover for sliding roof
NOTE:

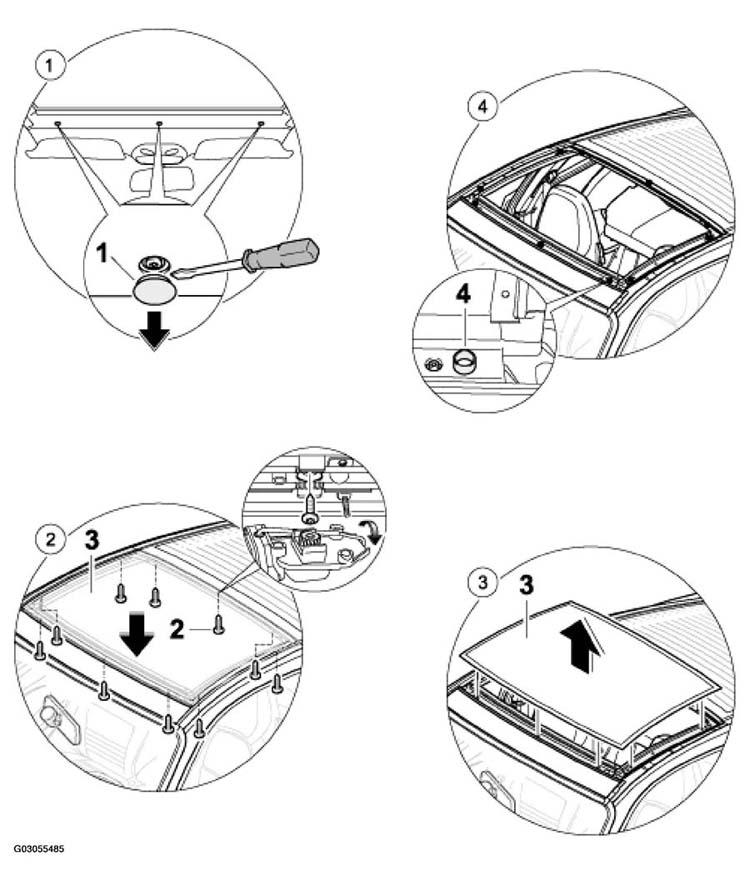

- Distance sleeves -4- are calibrated. See Fig 1.
- Before removal, mark the installation position.
- The distance sleeves vary from 11 - 15 mm.
SLIDING ROOF COVER REMOVING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|
| Removing the A-pillar trim | Refer to REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA . | |
| Removing fabric lining, front | See Removing the front fabric lining . | |
| Removing electric motor for sun blind | Refer to Removing and installing electric motor for sliding roof sun blind - Targa . | |
| 1 | Removing front cap | Insert a small screwdriver in the cap -1- . See Fig 1. |
| 2 | Unscrewing fastening screws | Unscrew fastening screws -2-3- . See Fig 1. |
| 3 | Removing cover for sliding roof | Lift off the cover for the sliding roof -3- . See Fig 1. |
| 4 | Marking the spacer sleeves | Mark the installation position of the spacer sleeves -4- . See Fig 1. |
